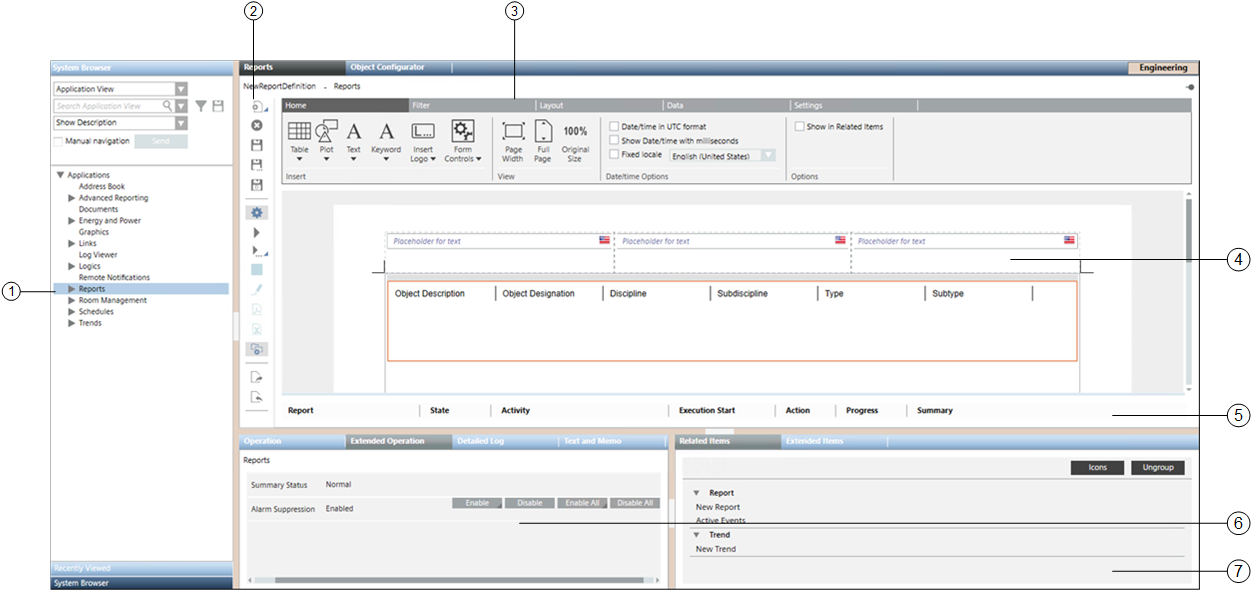

Reports Workspace

Reports Workspace

Name

Description

1

System Browser

Displays all the saved Report Definitions in Application View > Applications > Reports.

2

Reports Toolbar

Contains icons for performing various actions in Reports.
Reports toolbar for operating procedures - Displays only when the report is executed for a selected event from Assisted Treatment. Contains icons for saving user input and routing information.

3

Reports Ribbon

Contains several tabs and group boxes to help you define a Report Definition. The tabs available on the ribbon are:
Home, Filter, Layout, Data, and Settings.
NOTE: The Reports ribbon is only visible when you create a new Report Definition or select an existing one.

4

Report Definition

Displays the following:
Edit mode: Workspace where you configure a Report Definition in Edit mode.
Run mode: Workspace where you view an executed report in Run mode.

5

Report Management Section

Displays a report snapshot and documents for the executed reports.
NOTE: This section does not display when the report is executed for a selected event from Assisted Treatment.

6

Extended Operation Tab

Displays the properties of the selected Report Definition. The Execute button allows you to run a Report Definition.
NOTE: You must configure a Report Output Definition for the selected Report Definition.

7

Related Items Tab

Displays the following:
New Report: Opens a new Report Definition for configuration.
Related Report: Displays the names of the reports related to the selected System Browser object.
Show-in-Related Items Report: Displays the name of the reports that has the Show In Related Items check box selected.
