You are in the Assisted Treatment window, and the operating procedure includes a reportstep that you must manually execute. For background information about the Desigo CC reporting feature, see the reference section.
From the Steps checklist, select the [reportstep].

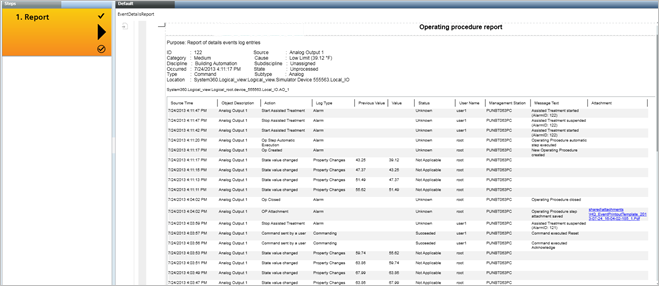

The preconfigured report displays in the Default tab. A new report is generated each time that you select this step.
If the report contains form controls (for example, editable fields or drop-down lists), specify the necessary information and click Save User Input.
Click Send to Output.
The report is routed to a file, email, or printer, depending on its configured output destination.
When you generate an alarm printout, a report, or an event-handling form using a virtual printer (for example, a PDF printer), the output files are saved in the following location: [Installation Drive]:\[Installation Folder]\[Project Name]\data\Reporting\Reports.
When you complete an assisted procedure of an event, any attachment (such as, alarm printout, report, or event-handling form) is saved in the following location: [Installation Drive]:\[Installation Folder]\[Project Name]\shared\attachments. The Activity Log report includes a link to these attachments.
.
.
