Example of Exported OPC CSV File

In the exported CSV file (a text file containing comma separated values), data is ordered to represent the hierarchy of the data points as shown in the OPC preview, including OPC DA server object model information.

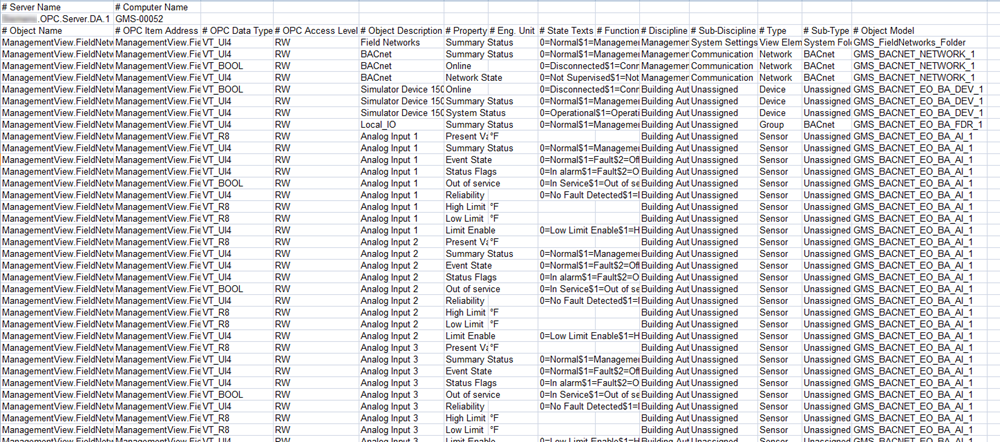

Exported CSV File Sample (Opened with MS Excel)

The exported file contains the following elements:

Server Name: [company name].OPC.Server.DA.1
Computer Name: name of the computer where the OPC server resides
OPC items information:

Object Name
OPC Item Address
OPC Data Type
OPC Access Level
Object Description
Property Description
Engineering Unit
State Texts
Object Function
Discipline
Sub-Discipline
Type
Sub-Type
Object Model
