Control using a Central Function

The central function overrides local room operation. The required operating mode in the room can be commanded again after successful central override.

Prerequisites:

The system browser is in Operating mode.
In System Browser, Management View is selected.
The online connection is established.

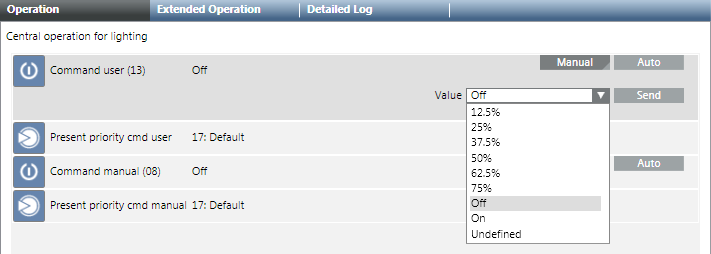

Switching on Lighting

Select Applications > Logics > Central Functions > [Hierarchy Name] > Light [Category] > [Central Lighting (CenOpLgt)].
The associated lighting objects are displayed in the Central Function Viewer.
Click the Operation tab.
Do the following:

For priority 13, select the Command user (13) property and click Manual.

For priority 8, select the Command manual (8) property and click Manual.

In the Value drop-down list, select the illuminance.
Click Send.

The message Command successful appears.

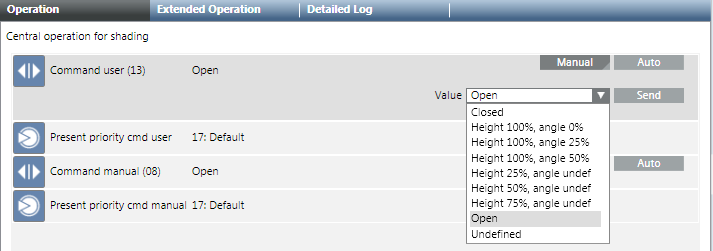

Controlling Blinds

Select Applications > Logics > Central Functions > [Hierarchy Name] > Blinds [Category] > [Central Blinds Control (CenOpShd)].
The associated blinds objects are displayed in the Central Function Viewer.
Click the Operation tab.
Do the following:

For priority 13, select the Command user (13) property and click Manual.

For priority 8, select the Command manual (8) property and click Manual.

In the Value drop-down list, select the blinds position.
Click Send.

The message Manual successful is displayed.

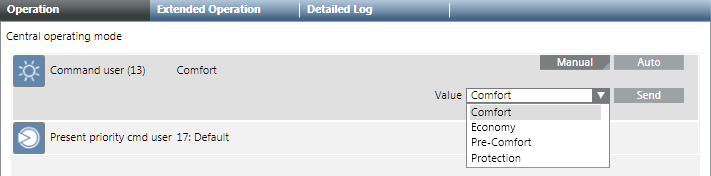

Changing Room Operating Mode

Select Applications > Logics > Central Functions > [Network name], property User command (13) [Category] > [Central Operating Mode (CenOpMod)].
The associated operating modes are displayed in the Central Function Viewer.
In the Operation tab, select the User command (13) property.
a. Click Manual.
b. In the Value drop-down list, select the operating mode.
c. Click Send.

The message Command successful appears.
