SICLIMAT X TECLA Scripts

SICLIMAT X OS is a legacy management station system which is used in conjunction with Simatic S7 PLC based sub-system. The management station offers an environment for scripted execution of programs, which are written using a proprietary language specification called TECLA (acronym for Technical Language). The scripts offer functionality to conduct actions such as read/write of data point attributes, printing of messages or file IO. Such scripts are used to carry out system-wide functions. The underlying script runtime interfaces with the SICLIMAT X OS services to conduct actions like read/write of data points.

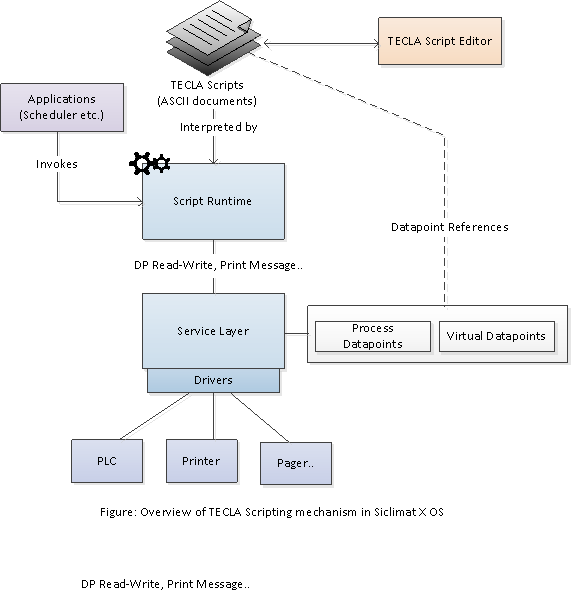

Overview of TECLA Scripting Mechanism in SICLIMAT X OS

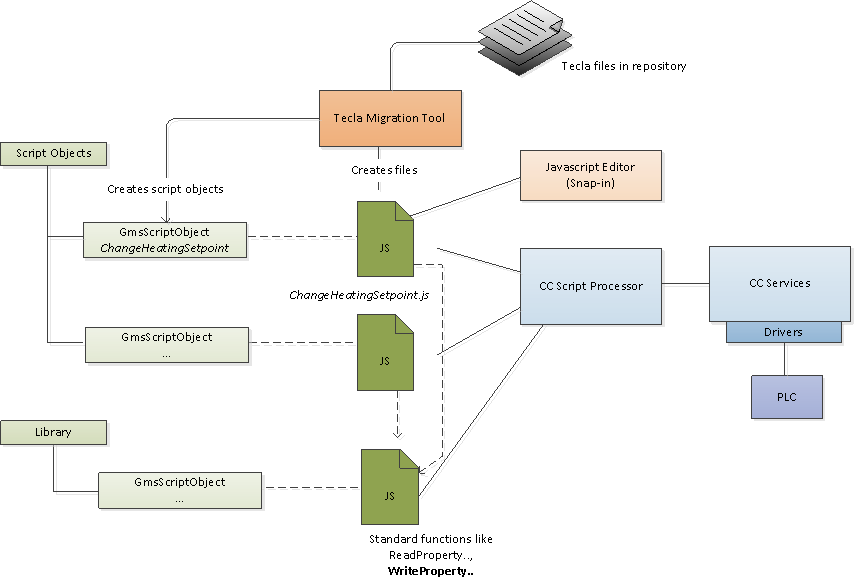

Overview of the Migration Process

Desigo CC provides scripted execution of actions using JavaScript™ as the programming language. Apart from the standard functions and operators available in the language, additional functions, like for read/write of data points, have been added in the standard library. This enables the engineering user to write a control program in JavaScript™ while using library-provided functions. The following code snippet shows an example script:

var sp = BrowserObject("System1.ManagementView:..TemperatureSetpoint");

var value = read(sp,"PresentValue");

console.log(value);

if(value < 22)

var result= executePropertyCommand(sp,"PresentValoue", "Write","26");



if (result.error)

{

console.Log("Command failed);

}

Each such script document is stored in the Desigo CC project and represented as an instance of a data point. They provide the interface to start, stop, and monitor the status of the script execution. Consequently, these representative data points can be used in applications such as Macros and Reactions to invoke script execution.

Since there is a direct relationship between a TECLA Script document and an instance of JavaScript™ object inDesigo CC , we convert each TECLA Script document to a corresponding JavaScript™ file (with a representative data point object). The conversion process is carried out by a language cross-compiler which converts the language constructs (such as conditions, loops or operators) and replaces system service functions in TECLA (like data point read/write) with equivalents from the Desigo CC standard library. Since many system service functions in TECLA do have an equivalent in the standard library, the Siclimat Extension Module contains an additional JavaScript™ library which contains the equivalent functions. Not all functions in TECLA are possible in Desigo CC runtime. In case of a missing function equivalent a notification displays user during the migration process. Hence, it may be required to manually modify or extend the migrated TECLA script so that the missing parts can be worked around. The figure below depicts the overview of the relation between the TECLA scripts and the JavaScript™ objects in Desigo CC.

Equivalent Script Objects in the System

Key Considerations for TECLA Scripts Migration

Error Handling

The constructs of FWHILE and FWHEN that were designed to act as code parts dealing with error conditions are replaced with try/catch blocks. The original TECLA error codes are mapped to Desigo CC specific codes, which are listed in the appendix.

Multilingual Scripts

TECLA Scripts can be written using English or German syntax and function names. However, after migration, the JavaScript™ and its function calls are based on only English texts. The functions defined in the standard library are also based on English names.

Multi-System Projects

In a distributed system, data points exist within the containers of the respective systems. The migration tool needs to locate data points which are referred in the TECLA scripts. In order to do this in a multi-system project, the migration tool will go through all available systems and for each system, it will search the logical view and then the User View.
NOTE: These virtual objects (called Rechenwert) are searched only in Application View. If the migration tool is not able to locate the data point in any of these systems, it will log an error in the migration summary.

JavaScript™ Functions in the Siclimat EM Library

The library for SICLIMAT X contains numerous JavaScript™ functions that enable you to perform SICLIMAT X-specific actions like SetOperatingMode (Betriebsart). Such function calls may be used in extensions and new JavaScript™ code that you want to create.

Overriding of Data Point Property Values

If an object is in manual or hand mode, the writing of the default property will fail and the message will be logged to console and trace channel.

Calendar is not accessible in JavaScript™

Access to calendar entries, such as Special day, holiday or weekend, will not be supported in JavaScript.

Virtual object Creation

Prior to script migration, the user has to create a virtual object manually under Application View > Logics > Virtual Objects. However, if the virtual object was not created and the reference is not resolved in the migrated JavaScript™, the user can create it after the migration and drag the reference in the migrated JavaScript™. The name of the virtual object should start with a digit. Virtual objects must be created using four types: Analog(A), Multistate(M), Binary(B) and Unsigned(Z). If the virtual object has a user-defined name (for example, UserdefinedVirtualObject1) that does not follow the naming convention of the virtual object should be created and reference in script should be changed manually.

Examples (from SICLIMAT) of object models and virtual object names

GMS_Virtual_Analog

1RWA0

1RWA100

GMS_Virtual_Multistate

1RWM0

1RWM100

GMS_Virtual_Binary

1RWB0

1RWB100

GMS_Virtual_Unsigned

1RWZ0

1RWZ100



Examples for SET, SETOP, SWITCH, and SWITCHOP

SET / SOLL:

  • Example Use: _script.SetProperty("System1.LogicalView:LogicalView.SomeObject", 2);
  • Sets the Sollwert property of the object to a value. If the object is in Manual mode, it will not change the value of the property.
  • In this example, it sets the value 2 to the Sollwert property of an object.



SETOP / SOLLBA:

  • Example Use: _script.SetPropertyWithOperationalMode ("System1.LogicalView:LogicalView.SomeObject", 2 , 3);
  • First, it sets the Betriebsart property of the object to a value. If the object is in Manual mode, it will not change the value of the property.
  • Second, it sets the Sollwert property of the object to a value. If the object is in Manual mode, it will not change the value of the property.
  • In this example, it sets the value 3 to the Betriebsart property and value 2 to the Sollwert property of an object.



SWITCH / SCHALTE:

  • Example Use: _script.ExecuteSwitch ("System1.LogicalView:LogicalView.SomeObject", 2);
  • Sets the Sollstufe property of the object to a value. If the object is in Manual mode, it will not change the value of the property.
  • In this example, it sets the value 2 to the Sollstufe property of an object.



SWITCHOP / SCHALTEBA:

  • Example Use: _script.ExecuteSwitchWithOperationalMode ("System1.LogicalView:LogicalView.SomeObject", 2 , 3);
  • First, it sets the Betriebsart property of the object to a value. If the object is in Manual mode, it will not change the value of the property.
  • Second, it sets the Sollstufe property of the object to a value. If the object is in Manual mode, it will not change the value of the property.
  • In this example, it sets the value 3 to the Betriebsart property and the value 2 to the Sollstufe property of an object.



Matrix for Possible Properties of Objects for SET, SETOP, SWITCH, and SWITCHOP

Properties of Objects

Command

Object Type

Property

SET

Sollwert, Stellbefehl

Sollwert

Regler

Grundsollwert

OptStell

AktualSollwert

SETOP

Sollwert, Stellbefehl

Sollwert

Regler

Grundsollwert

SWITCH

Schaltbefehl

Sollstufe

OptSchalt

AktualSollstufe

SWITCHOP

Schaltbefehl

Sollstufe



Resolving the Error Target not found for SET, SETOP, SWITCH, and SWITCHOP

In TeclaJavascript™ library for SET, SETOP, SWITCH, SWITCHOP fixed properties are used.

  • SET / SETOP: Fixed Sollwert property is used.
  • SWITCH / SWITCHOP: Fixed Sollstufe property is used.

However, while executing the Tecla script, these fixed properties can be missing in object due to different object type, which results in the error message Target not found being displayed. The user can define the required property explicitly by using “object/PropertyName” as shown in following example.



Example 1:

_script.SetProperty("System1.LogicalView:LogicalView.SomeObject", 3);

Output on console: Target not found

Reason:

The object SomeObject does not have the Sollwert property but the Grundsollwert property.

New implementation:

_script.SetProperty("System1.LogicalView:LogicalView.SomeObject/Grundsollwert", 3);



Example 2:

_script.ExecuteSwitch ("System1.LogicalView:LogicalView.SomeObject", 3);

Output on console: Target not found

Reason:

The object SomeObject does not have the Sollstufe property but the AktualSollstufe property.

New implementation:

_script. ExecuteSwitch("System1.LogicalView:LogicalView.SomeObject/AktualSollstufe", 3);



Example 3:

_script.SetProperty("System2.Logical2:Logical2Root.GiWi.DI_CC.CC_SEMINAR.KLIMA2.RF1_DRUCKREG.DRUCK_REGL", 180);

Output on console: Target not found

Reason:

The object “DRUCK_REGL” does not have the Sollwert property but the Grundsollwert property.

New implementation:

_script.SetProperty("System2.Logical2:Logical2Root.GiWi.DI_CC.CC_SEMINAR.KLIMA2.RF1_DRUCKREG.DRUCK_REGL/Grundsollwert", 180);

Appendix SICLIMAT X

Mapping of TECLA error code to Desigo CC specific codes

JavaScript Functions in the SICLIMAT Library

The following statement includes the library JavaScript file.

var _script = include("TeclaScriptLibrary.js" ,"BA_Software_Siclimat_Script_Migration_1");

Function Name EN Siclimat

Function Name

Purpose

Example use of the function



ReadProperty

Reading objects property and return value.

_script.ReadProperty("System1.LogicalView:LogicalView.SomeObject");

OPERATING_MODE

SetOperatingMode

Set operation mode of object.

0 - External

1 - Manual

2 - Automatic

3 - OS

_script.SetOperatingMode("System1.LogicalView:LogicalView. SomeObject", 3);

SET

SetProperty

Set specific property value of an object to a value.

_script.SetProperty("System1.LogicalView:LogicalView.SomeObject", 3);

SETOP

SetPropertyWithOperationalMode

Set operation mode of a object and

Set specific property value of an object to a value.

_script.SetPropertyWithOperationalMode("System1.LogicalView:LogicalView. SomeObject", 3, 3);

SWITCH

ExecuteSwitch

Switches the set level of an object to a different value.

_script.ExecuteSwitch("System1.LogicalView:LogicalView. SomeObject ", 3);

SWITCHOP

ExecuteSwitchWithOperationalMode

Set operation mode of a object and Switches the set level of the object to different value.

_script.ExecuteSwitchWithOperationalMode("System1.LogicalView:LogicalView.SomeObject ", 3, 3);

WAIT

Wait

Stop execution of a script for “HH:MM:SS” time.

_script.Wait("00:00:01");

WAIT_S

WaitForSeconds

Stop execution of a script for provided seconds.

var variable1 = 10; _script.WaitForSeconds(variable1);

WAIT_M

WaitForMinutes

Stop execution of a script for provided minutes.

var variable1 = 10; _script.WaitForMinutes(variable1);

Wait_V

Wait_V

Stop execution of a script for Time span time values are taken from local variables for hour, minutes and seconds

var variable1 = 01; _script.Wait_V(variable1, variable1, variable1);

LIMIT

SetLimitPropertyValue

Changes a certain limit of an object

_script.SetLimitPropertyValue("System1.LogicalView:LogicalView.SomeObject/Limit Property ", 3);

WRITE

WritePropertyValue

Direct change of object properties.

_script. WritePropertyValue("System1.LogicalView:LogicalView.SomeObject/Limit Property ", 3);

COUNTER

SetCounter

Change the value of the counter object.

_script.SetCounter("System1.LogicalView:LogicalView. SomeObject", 3);

CALCULATION_VALUE

SetCalculationValue

Changes the current value of a compute object

_script.SetCalculationValue("System1.LogicalView:LogicalView.006XTGA.E0.AS30.LICHT_LINIEN.09.SB/Iststufe", 10);

LOG

GetLog

Get logarithmic value.

_script.GetLog(10);

ROOT

GetRoot

Get root value.

_script.GetRoot(10);

DEGSIN

GetDegSIN

Get SIN value in Degree

_script.GetDegSIN(10);

DEGCOS

GetDegCOS

Get COS value in Degree

_script.GetDegCOS(10);

DEGTAN

GetDegTAN

Get TAN value in Degree

_script.GetDegTAN(10);

RADSIN

GetRadSIN

Get SIN value in Radian

_script.GetRadSIN(10);

RADCOS

GetRadCOS

Get COS value in Radian

_script.GetRadCOS(10);

RADTAN

GetRadTAN

Get TAN value in Radian

_script.GetRadTAN(10);

TRUNC

Truncate

Truncate digits after decimal digit. Also round up negative floating number.

_script. Truncate (10.33);

DAY

GetCurrentDay

Get value of a week day 1 to 7.

_script.GetCurrentDay()

TIME

GetCurrentTime

Check time is in 24 hour format else print error.

_script.GetCurrentTime("6:00:00");



GetTime

Get current time in 24 hour format “HH:MM:SS”

_script.GetTime( );



GetDay

Provide different Date functions. e.g. Day : 1 – 31 Month: 1 – 12 Year: 1997 – 2025 Hour: 0 – 23 Minute: 0 – 59 Weekday: 1(Monday) - 7(Sunday)

Day_of_year: 1 - 366

Week_of_year: 1 - 52

Minute_of_day: 0 - 1440

Daylight savings time: 0 or 1

leap year: 0 or 1

_script.GetDay() _script.GetDay( "SATURDAY"); _script.GetDay( "day"); _script.GetDay( "month"); _script.GetDay( "year"); _script.GetDay( "hour"); _script.GetDay( "minute"); _script.GetDay( "weekday"); _script.GetDay( "day_of_year"); _script.GetDay( "week_of_year"); _script.GetDay( "minute_of_day"); _script.GetDay( " daylight_savings_time "); _script.GetDay( " leap_year"); _script.GetDay( " leap_year");

START

StartScript

Starts the execution of the script from same system.

_script.StartScript("SomeScriptName");

CANCEL

CancelScript

Stops the execution of the script from same system.

_script.CancelScript("SomeScriptName ");

FUNCTION

CallFunction

Start Subroutine script execution of the script from same system.

var result =_script.CallFunction("SomeScriptName ", a, b);

var result1 = result[0]; var result2 = result[1];

_ERROR

GetErrorCode

Get error code, In case of reading / writing failure of an object error code is set to the variable. (Currently return 0 or 1, 0 in case of no error and 1 in case of error).

_script.GetErrorCode();

Handling Missing Functions in the System in SICLIMAT X

Some functions which are not migrated in Desigo CC are replaced with dummy function call in migrated JavaScript. Following is the list of such functions and possible workaround.

Function Name EN Siclimat

Function Name as dummy

Purpose

Workaround (if any)

TEXT

SET_TEXT

Output of plain text over the message route.



PROTOCOL

SET_PROTOCOL

Output of an existing protocol on printers



PRINTER_SHIFT

SET_PRINTER_SHIFT

Switch-over of the output of an open log from printer1 to printer2.



RPRINTER_SHIFT

SET_RPRINTER_SHIFT

Withdraws the switch-over of the output of an open log from



PRINTER_ADD_ON

SET_PRINTER_ADD_ON

Switches the output of an open log from printer1 additionally



RPRINTER_ADD_ON

SET_RPRINTER_ADD_ON

Withdraws the output of an open log on printer1 and on printer2.



PRINTER_LOCK

SET_PRINTER_LOCK

Locks the output of an open log.



RPRINTER_LOCK

SET_RPRINTER_LOCK

Withdraws the printer lock for the output of an open log.



MACRO_SYSTEM

SET_MACRO_SYSTEM

Initiates an arbitrary UNIX system command.



MAKROSYSTEM

SET_MAKROSYSTEM

Initiates an arbitrary UNIX system command.



MACRO_SYSTEM_W

SET_MACRO_SYSTEM_W

Initiates an arbitrary UNIX system command.



SET_SCHREIBE_VAR

SET_SCHREIBE_VAR

Write data point values to file.



SET_LESE_VAR

SET_LESE_VAR

Read data point values from file.



SETHEATING

SET_HEATING

Sets the mode of heating control.

Replace with equivalent data point writes.

SETCHILLING

SET_CHILLING

Sets the mode of Chilling control.

Replace with equivalent data point writes.

OPMODE

SET_OPMODE

Changes Operating mode of the object.

Replace with equivalent data point writes or Use function “SetOperatingMode” from Tecla JavaScript library.

OSWITCH

SET_OSWITCH

Similar to the SWITCH command. Additionally, the monitoring of the consumer is initiated via the Energy management program.

Replace with equivalent data point writes.

PHASE

SET_PHASE

Sets the phase flag of an object



DCOS

SET_DCOS

Changes the DCOS flag of an object.



SWITCH_OFF

SET_SWITCH_OFF

Changes the switch-off flag of an object



BUFFER

SET_BUFFER

N/A



RECOVER

SET_RECOVER

Coordinates the "recovery" of a TECLA command.



GLOBAL

SET_GLOBAL

N/A



PRINTER

SET_PRINTER

N/A



EVENT

SET_EVENT

N/A



AWAIT

SET_AWAIT

N/A



TCC

SET_TCC

N/A



MACRO_T

SET_MACRO_T

N/A



CLASS

SET_CLASS

N/A



TOWARD

SET_TOWARD

N/A



TO

SET_TO

N/A



ZLOG

GetZLOG

N/A

Use logarithmic functions provided by scripting

ZSIN

GetZSIN

N/A

Use logarithmic functions provided by scripting

ZCOS

GetZCOS

N/A

Use logarithmic functions provided by scripting

ZTAN

GetZTAN

N/A

Use logarithmic functions provided by scripting

TECLA Calls

  • Service Pack 501 is successfully installed.
  1. Log on to the console as the sicx user.
  1. Run the teclaCalls script.
    This will compile a list of which TECLA scripts are called within Siclimat-X and where they are called. This includes calling scripts from:
    a. Schedules
    b. Events
    c. Pictures
    d. Scripts

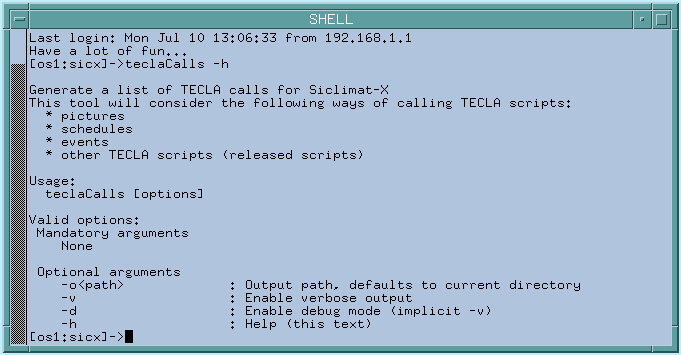

    NOTE: A full list of options can be displayed with teclaCalls –h.
  • The list of TECLA calls done in Siclimat-X is created in the current working directory or optional given output directory with the filename scriptCalls.csv.
  • The list contains comma-separated values and can be imported into Microsoft Excel.
