Operating Central Function
Entire sections of a building can be easily controlled using the central function, including:
- Fire Department Emergency Functions
- Switching on Emergency Lighting
- Overriding Emergency Lighting Rest Operating Mode
- Controlling Ventilation
- Raising Blinds
- Standard Operation
- Switching Lights On and Off
- Blinds up and down
- Changing Room Occupancy Mode

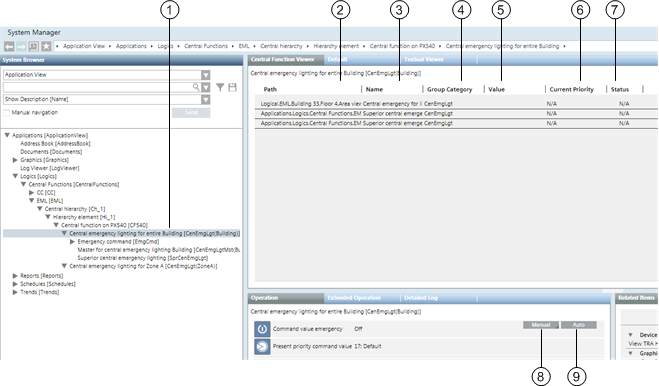

Central Function Viewer | ||
| Name | Description |
1 |
| Displays the selected group object in the System Browser. |
2 | Path | Displays the object's hierarchy structure. |
3 | Name | Displays the object's name. |
4 | Group categories | Displays the group association. |
5 | Value | Displays the object's present value. |
6 | Current priority | Displays the presently pending BACnet priority for the object. Priorities can be displayed differently for each object. Objects with BACnet priority ≦ 7 cannot be switched. |
7 | State | Displays the object's state. |
8 | Manual | Manual switch on or off. |
9 | Auto | Reset objects to auto mode. |
