Modifying the Advantronic Communication Settings

When integrating an Advantronic AD300 fire panel, after the import of the configuration file, you can modify the communication settings (TCP port and IP address) of the communication interface.

  • System Manager is in Engineering mode.
  1. In System Browser, select Management View.
  1. Select Project > Field Networks > [Advantronic network] > [Advantronic interface].
  1. In the Modbus tab, open the Communication Interface expander.
  1. Modify the values in the fields TCP port or IP address.
  1. Click Save .

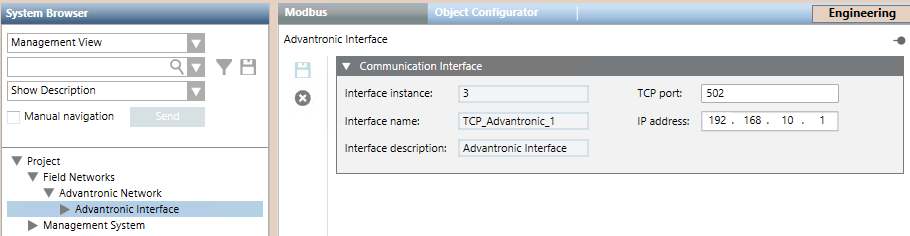

Communication Settings of the Interface
