Troubleshooting the HDB, NDB and Long Term Storage (LTS)

The following are the most common errors and problems that occur when working with HDB and Long Term Storage. This section provides information related to their cause and methods to resolve them.

History Database is not Operating

Problem: The history database is not operating.

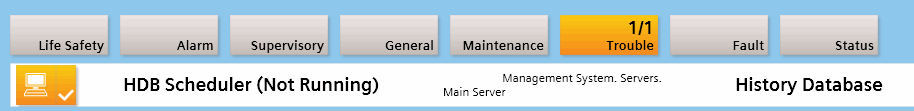

The following error message from the History Database can occur and display in Desigo CC (see the History Database Alarms table below)

Solution:

Perform the following steps to solve the issue:

  1. Exit the Desigo CC program.
  1. Start the System Management Console.
  1. Click Stop .
  • The database stops.
  1. Check whether the corresponding History Database is linked to the project.
  1. Click Start .
  • The database starts.
  1. Restart the Desigo CC program.
  1. Check the program to ensure proper operation.

NOTE:
Contact your database administrator or local partner support if problems with the History Database continue.

History Database Alarms

Object

Property

Messages

Alarm Values

Impact

History Database

Settings Manipulated

Illegitimate Client Access

True

Unauthorised changes in HDB configuration can cause problems

Database Fill Level

History Database Fill Level

> 95%

HDB accepts no more data - it is almost full

Task Processor

Maintenance Inactive

Disabling, Immediate Disabling, Disabled, Timeout, Disabling Timeout, Immediate Disabling Timeout

GMS HDB Service does not drive the HDB maintenance. This can cause corruption if lasting for a long time

Task Processor Usage

High Maintenance Load

> 95%

HDB maintenance tasks take very long. This may signal problems with SQL server performance/load

Archive Creation

Cannot Create Archive Slice

See information below the table [1]

An error in archiving stops data being written into HDB/archives. In a long term can cause corruption.

Archive Switch

Cannot Switch Archive Slices

Archive Closing

Cannot Close Archive Slice

Archive Migration

Cannot Migrate Data to Archive

Archive Groups

Archiving

Storage not active

Yes

An error in archiving stops data being written into HDB/archives. In a long term can cause corruption.

Archive Groups Custom

Archiving

Storage not active

Attachments

Size Relative

Folder Size is Close to Limit

>= 85%

Possible problem with too little space for eventual new attachment files

Folder Size is Exceeding Maximum Limit

>= 100%

State

Folder Path Format Invalid

Invalid Path Format

Attachment storage cannot be used if the folder is not accessible

Folder Not Existing

Path Not Existing

Folder Not Accessible

Path Not Accessible

Backup

Backup Status

History Database

Failed

No HDB backup was created

Reader

Connection Status

History Database

Not Connected

Cannot read data to/from HDB

Writer

Connection Status

History Database

Not Connected

Cannot write data to/from HDB

This information belongs to the table above [1], column Alarm Values:

No archive piece with required state available; Cannot create backup for an archive piece; Automatically administered archive piece database cannot be created; Manually administered archive piece database does not fulfill the prerequisites; Manually administered archive piece database not available; Failed to create infrastructure in archive piece database; Failed to increase size of archive piece database; Semaphore for initial backup is not free; Cannot switch to next archive piece; Failed to reorganize indices in closing archive piece; Failed to shrink archive piece database; Failed to configure final arc-piece; No current archive piece for migration available; Error writing to current archive piece during data migration; No existing or deactivated storage assigned to an archive group; Failed to create object summary in an archive.



Determining the Status of a Task

The Task Info expander under History Databases > [SQL Server Name] shows the task queue with the state of each task. Place your cursor over the task to see the tooltip.

The following table provides information on the different states.

State

Cause

Resolution

FAILED

The server failed to perform a task.

For example, the server could not create a backup.

  1. Place your cursor over the task to see a tooltip with an error message from the SQL server. The message may give you a hint as to what went wrong and how to solve the problem.
  2. Execute the task again.

HOT

The server failed to perform a task and therefore cannot proceed to the next task.

For example:

  • The server could not perform a task because you do not have the rights to execute this task.
  • The server could not perform a task because the disk is full.
  1. Place your cursor over the task to see a tooltip with an error message from the SQL server. The message may give you a hint as to what went wrong and how to solve the problem.
  2. If you do not have the rights to execute a task, get the necessary rights.
    If the disk is full, make space on the disk.
  3. Click Edit and click Save.
    The server will perform the task again. The state will switch to PLANNED and then to SUCCESSFUL or HOT again.

SMC Does Not Connect to the Database

Problem: SMC Does Not Connect to the Database

Cause: If your hard disk (where the database is located) is encrypted with a software application, such as BitLocker, and you shut down and restart your computer, the SMC may not be able to connect to the database. The database may display the status Recovery Pending.

Solution: Perform either of the following:

  • Restart the SQL Server instance.
  • Take the database offline and bring it online again. From the main menu of the MS SQL Server Management Studio, select Task > Take Offline and then Task > Bring Online.

The SMC connects to the database.

NOTE:
If you need to encrypt the hard disk, use the SQL Server Enterprise Edition, which has Transparent Data Encryption (TDE).



History Database Creation Fails due to Mismatch in the Localization Settings

Problem: History Database creation fails with error.

Cause: History Database creation fails due to mismatch in the localization settings.

Solution: To confirm History Database creation to fails due to localization settings, do the following:

  1. Open Computer Management > Local Users and Groups > Groups > Administrators.
  2. Temporarily add SYSTEM to the Administrators group if not seen already and observe the display name for example, NT AUTHORITY\SYSTEM.
  3. If it mismatches with the one shown in SMC during History Database creation, for example,
    NT-AUTORITÄT\SYSTEM then it is because of localization settings.

Perform the following steps to resolve the issue:

  1. Open Windows Control Panel > Region.
  2. In the window that displays select Administrative tab and click Copy settings.

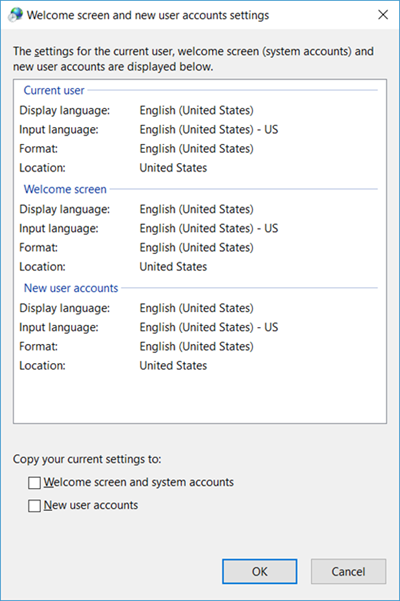

  3. A Welcome screen and new user accounts settings window displays.
  4. Check if the settings in Current user, Welcome screen, New user accounts are identical.
  5. If not, select the two checkboxes to copy the current settings to Welcome screen and system accounts and to New user accounts and click OK.
  6. Re-launch SMC and create the History Database with a different name.



Troubleshooting the System Hostname in HDB and NDB

Problem
If you have changed your system's hostname, then in SMC the SQL Server Instance still displays the Previous Name in red.
In SMC, wherever this old system's hostname is referred this creates connection problem with remote SQL server.

Solution
After the system's hostname is changed, then in SMC you need to update SQL server instance name in Database Infrastructure > [SQL server instance].

  • History Database and Notification Database is already created and available on selected server.

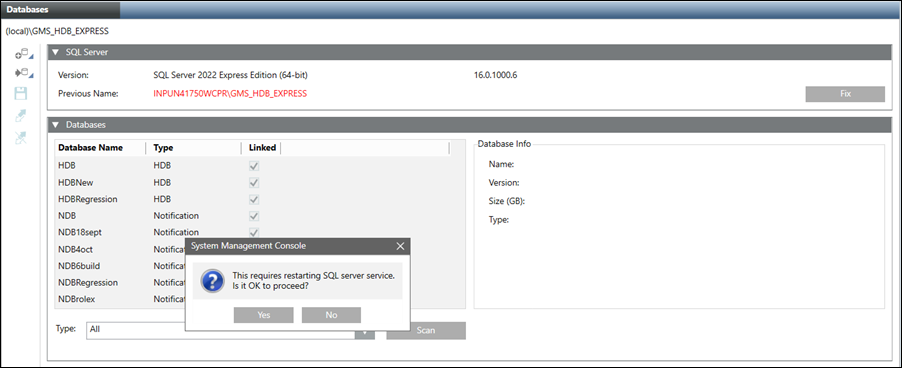

  1. Open Database Infrastructure > [SQL Server instance].
  1. In SQL Server expander, the Previous Name is highlighted in red color.
  1. Click Fix button.
    The Fix button appears only when you have changed the system's hostname. Once the system's hostname is changed this Fix button disappears.
  • A message displays, click Yes to restart SQL server service.
  • Restarting the SQL server service, internally updates the SQL Server Instance.
