Modify Graphic for Room Lab

Scenario: The room graphic must be adapted to the actual room and ventilation requirements after you have integrated your lab room devices.

Lab Room
Lab Room
  1. The System Browser is in Operating mode.
  2. In System Browser, Logical View is selected.
  1. Select Logical > [Hierarchy name] > [Hierarchy level 1-n] > [Lab room].
  2. Displays the Default tab.
  3. In the Extended Operation tab, select the Room lab profile type property.
    a. Click Change.
    b. In the Value drop-down list, select option:
    - 2 Supply air and extract air
    - Unused
    - Supply air and extract air
    - Supply air and extract air + Anteroom
    - Supply and extract air + cleaning
    - Supply air and extract air + Office

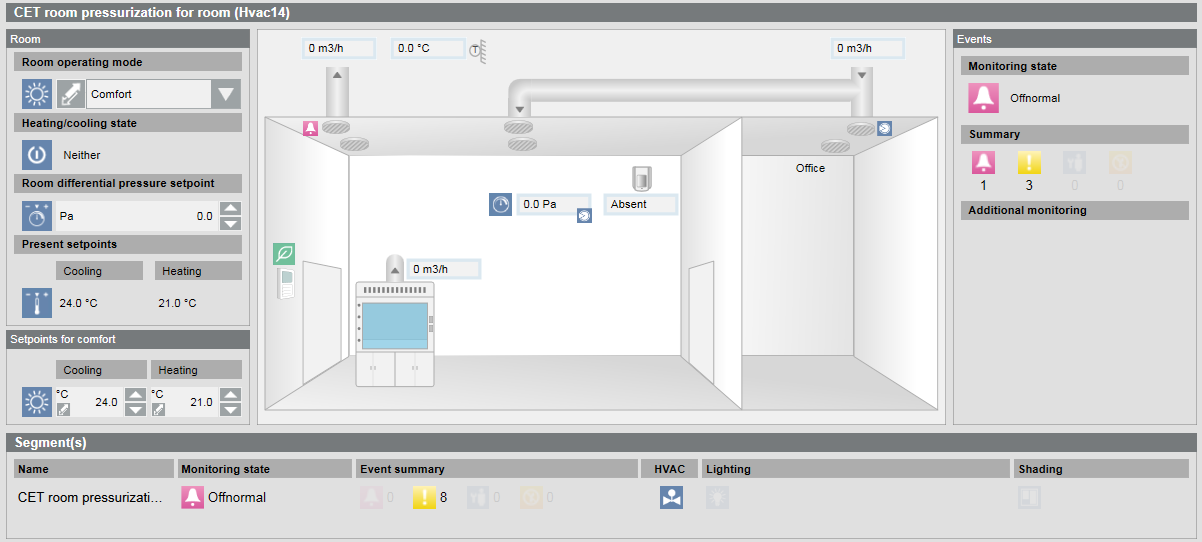

    The selected graphic is modified for this room lab.
    c. Click Send.
