Display Desigo Insight Trend Data

Scenario: Desigo Insight trend data must be checked prior to migration.



Requirements:

  • The Desigo Insight migration package is on the computer.



Steps:

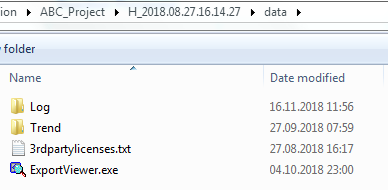

  1. In Windows Explorer, go to the Desigo Insight migration files.
  1. Select Data.
  1. Double-click file ExportViewer.exe.
  • The Desigo Insight Export Viewer opens.

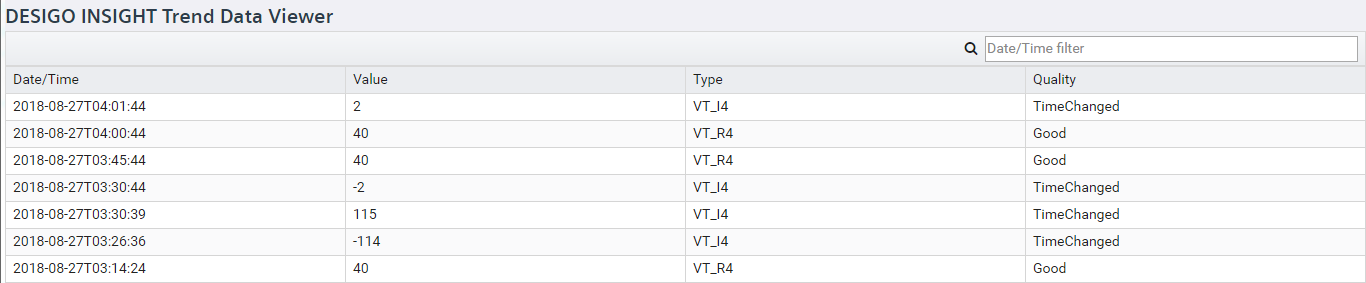

  1. Select Trend Data.
  1. Select the appropriate trend.
  • All data on this trend displays.
  • Use the Date/Time filter to reduce the data display. The entry format is the same the syntax for column Date/Time, for example: 2018-10-25T10:13:00.
  • Data prior to and including the entered date is displayed.
