Modifying the Notifier Onyx Communication Settings

When integrating a NOTIFIER® Onyx fire panel, after the import of the configuration file, you can modify the communication settings (TCP port and IP address) of the communication interface.

  1. System Manager is in Engineering mode.
  1. In System Browser, select Management View.
  2. Select Project > Field Networks > [Onyx network] > [Notifier Onix interface].
  3. In the Modbus tab, open the Communication Interface expander.
  4. Modify the values in the fields TCP port or IP address.
  5. Click Save .

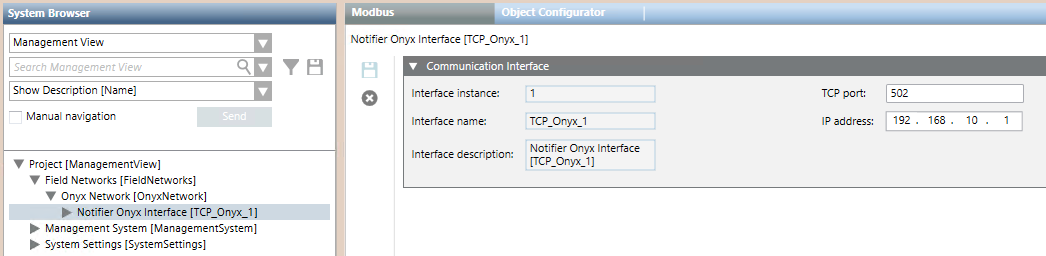

Communication Settings of the Interface
Communication Settings of the Interface
