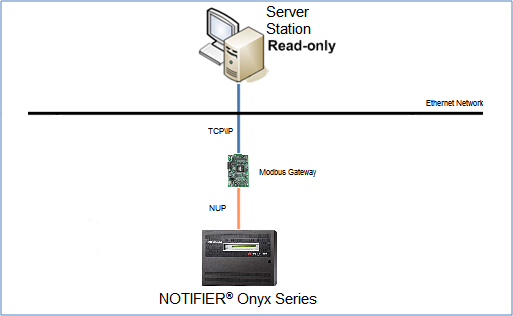

Notifier Onyx System Architecture

The Onyx fire control panel can communicate with the management station over the Modbus TCP protocol via the NOTIFIER® Modbus gateway, which works as a bridge between the Modbus over TCP\IP and the RS232 (NUP) protocol used by the fire panel.
