Notifier Onyx Events

The following is the list of events available in Desigo CC for the NOTIFIER® Onyx fire panel:

  • Gateway Device Failure
  • Gateway Nodes 1 to 247 Offline
  • Panel related Troubles
  • Printer Offline
  • Printer Cover Open
  • Printer Paper Out
  • Printer Queue Full
  • Annunciator Trouble
  • Annunciator No Answer
  • RemoteDisplay Trouble
  • RemoteDisplay No Answer
  • Loop Ground Fault
  • Loop Style4 ShortA
  • Loop Style4 ShortB
  • Loop Style6 Negative
  • Loop Style6 Positive
  • Loop Style6 Short
  • Loop Too Many Devices
  • Loop Tx/Rx Error
  • Loop Type Mismatched
  • Loop Continuity Test Failed
  • Loop Unprogrammed Devices
  • Loop Mapping In Progress
  • Loop IR Mode Active
  • PanelCircuit Fire Alarm
  • PanelCircuit Security Alarm (Life)
  • PanelCircuit Critical Process Alarm (Life)
  • PanelCircuit Medical Emergency Alarm
  • PanelCircuit Security Alarm (Property)
  • PanelCircuit Critical Process Alarm (Property)
  • PanelCircuit Guard Tour Signal
  • PanelCircuit Equipment Signal
  • PanelCircuit Disabled Alarm
  • PanelCircuit Disabled Active
  • PanelCircuit Activation
  • PanelCircuit Activation No Ack
  • PanelCircuit Device Not Present
  • PanelCircuit Disabled
  • BellCircuit Fire Alarm
  • BellCircuit Security Alarm (Life)
  • BellCircuit Critical Process Alarm (Life)
  • BellCircuit Medical Emergency Alarm
  • BellCircuit Security Alarm (Property)
  • BellCircuit Critical Process Alarm (Property)
  • BellCircuit Guard Tour Signal
  • BellCircuit Equipment Signal
  • BellCircuit Disabled Alarm
  • BellCircuit Disabled Active
  • BellCircuit Activation
  • BellCircuit Activation No Ack
  • BellCircuit Device Not Present
  • BellCircuit Disabled
  • Detector Fire Alarm
  • Detector Security Alarm (Life)
  • Detector Critical Process Alarm (Life)
  • Detector Emergency Alarm
  • Detector Security Alarm (Property)
  • Detector Critical Process Alarm (Property)
  • Detector Guard Tour Signal
  • Detector Equipment Signal
  • Detector Disabled Alarm
  • Detector Disabled Active
  • Detector Activation
  • Detector Activation No Ack
  • Detector Device Not Present
  • Detector Disabled
  • Module Fire Alarm
  • Module Security Alarm (Life)
  • Module Critical Process Alarm (Life)
  • Module Emergency Alarm
  • Module Security Alarm (Property)
  • Module Critical Process Alarm (Property)
  • Module Guard Tour Signal
  • Module Equipment Signal
  • Module Disabled Alarm
  • Module Disabled Active
  • Module Activation
  • Module Activation No Ack
  • Module Device Not Present
  • Module Disabled
  • 4–20ma Module Fire Alarm
  • 4–20ma Module Security Alarm (Life)
  • 4–20ma Module Critical Process Alarm (Life)
  • 4–20ma Module Emergency Alarm
  • 4–20ma Module Security Alarm (Property)
  • 4–20ma Module Process Alarm (Property)
  • 4–20ma Module Guard Tour Signal
  • 4–20ma Module Equipment Signal
  • 4–20ma Module Disabled Alarm
  • 4–20ma Module Disabled Active
  • 4–20ma Module Activation
  • 4–20ma Module Activation No Ack
  • 4–20ma Module Device Not Present
  • 4–20ma Module Disabled
  • Zone Fire Alarm
  • Zone Security Alarm (Life)
  • Zone Critical Process Alarm (Life)
  • Zone Emergency Alarm
  • Zone Security Alarm (Property)
  • Zone Critical Process Alarm (Property)
  • Zone Guard Tour Signal
  • Zone Equipment Signal
  • Zone Disabled Alarm
  • Zone Disabled Active
  • Zone Activation
  • Zone Activation No Ack
  • Zone Device Not Present
  • Zone Disabled

Combined events

Because the Onyx panel also supports combined conditions (for example, Zone Alarm + Part Disabled), the integration into Desigo CC also provides combined event texts to cover these cases although not specified in the list above.

Analog Values 4-20ma Modules

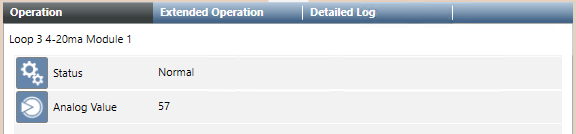

Analog values for 4-20ma Modules are displayed in the Analog Value property in the Operation tab.
