Modifying the Multiscan++/Galileo Communication Settings

When integrating a Sensitron Multiscan ++ or Galileo gas control panel, after the import of the configuration file, you can modify the communication settings (TCP port and IP address) of the communication interface.

  1. System Manager is in Engineering mode.
  1. In System Browser, select Management View.
  2. Select Project > Field Networks > [Multiscan network] > [Sensitron Multiscan interface].
  3. In the Modbus tab, open the Communication Interface expander.
  4. Modify the values in the fields TCP port or IP address.
  5. Click Save .

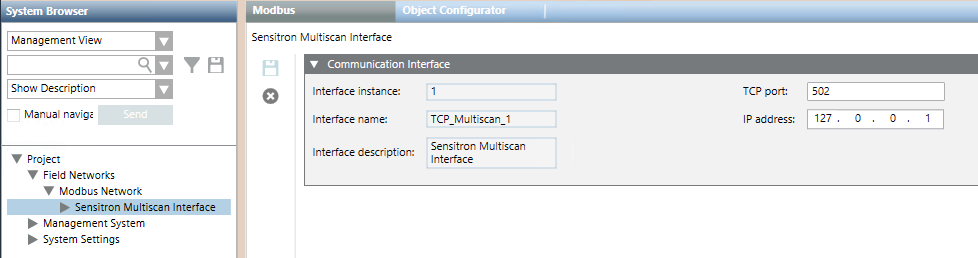

Communication Settings of the Interface
Communication Settings of the Interface
