Modifying the Notifier ID 3000 Communication Settings

When integrating a NOTIFIER® ID3000 fire panel, after the import of the configuration file, you can modify the communication settings (TCP port and IP address) of the communication interface.

  1. System Manager is in Engineering mode.
  1. In System Browser, select Management View.
  2. Select Project > Field Networks > [ID3000 network] > [Notifier ID3000 interface].
  3. In the Modbus tab, open the Communication Interface expander.
  4. Modify the values in the fields TCP port or IP address.
  5. Click Save .

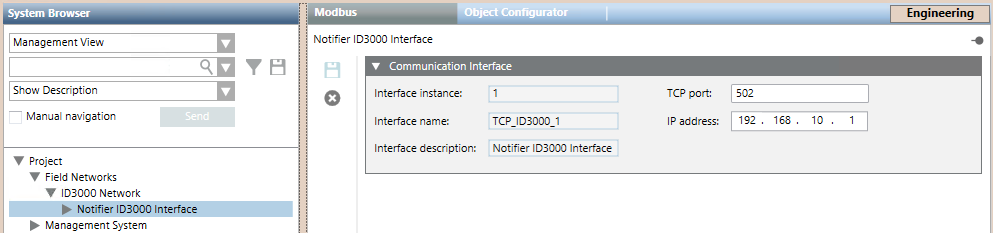

Communication Settings of the Interface
Communication Settings of the Interface
