Riello UPS Graphic Templates

The following graphic template is provided with the installation of the Riello UPS extension.

TEM_Riello_UPS_None_None_001_150

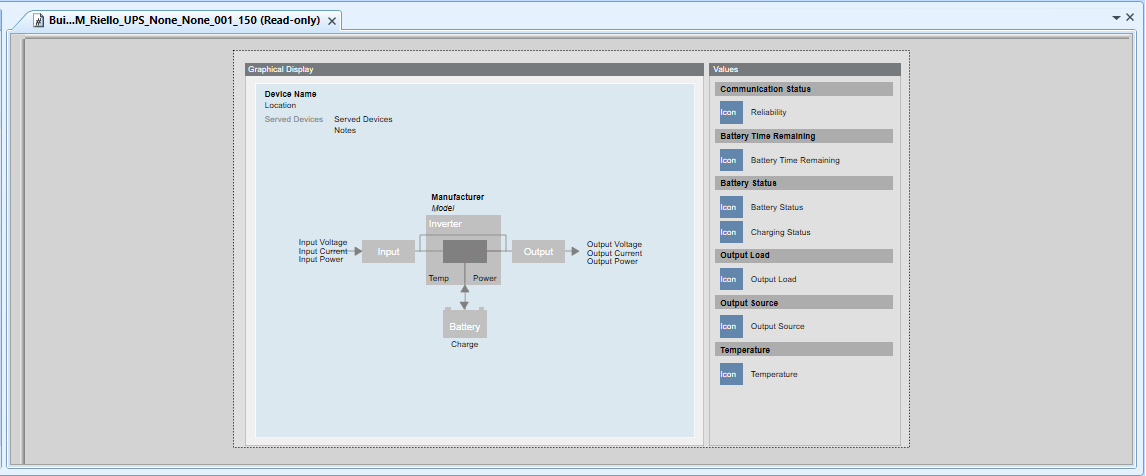

In Engineering mode, the graphic template displays how Riello UPS properties are graphically represented.

Riello UPS Engineering Graphic Template
Riello UPS Engineering Graphic Template

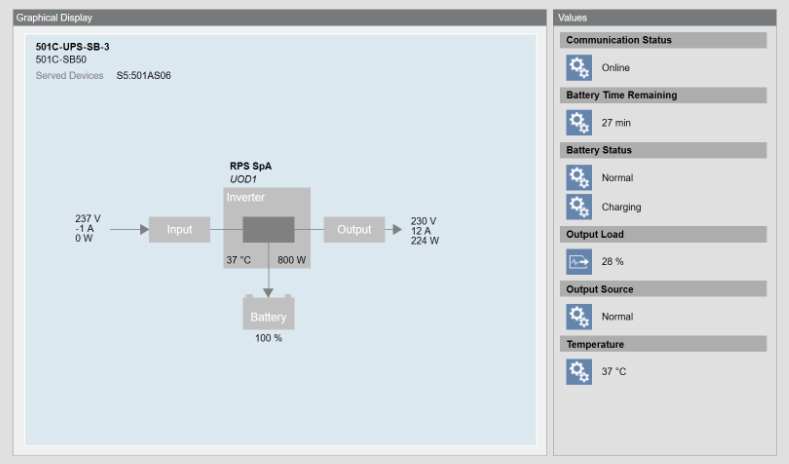

In Operating mode, the Riello UPS data is graphically displayed as follows.

Riello UPS Operating Graphic
Riello UPS Operating Graphic
