Room Booking Graphic Template

The following graphic template is provided with the installation of the Room Booking extension common library.

RoomBooking_HotelRoom_None_001

In Engineering mode, the graphic template displays how room booking properties are graphically represented.

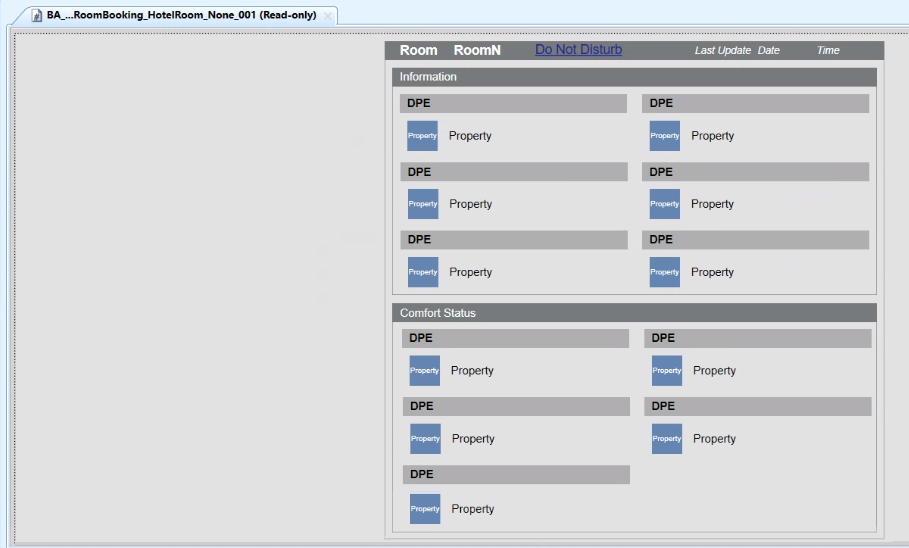

Room Booking Engineering Graphic Template
Room Booking Engineering Graphic Template

For details on the different properties, see Room Booking Object Models.

In Operating mode, the room booking details are graphically displayed as follows.

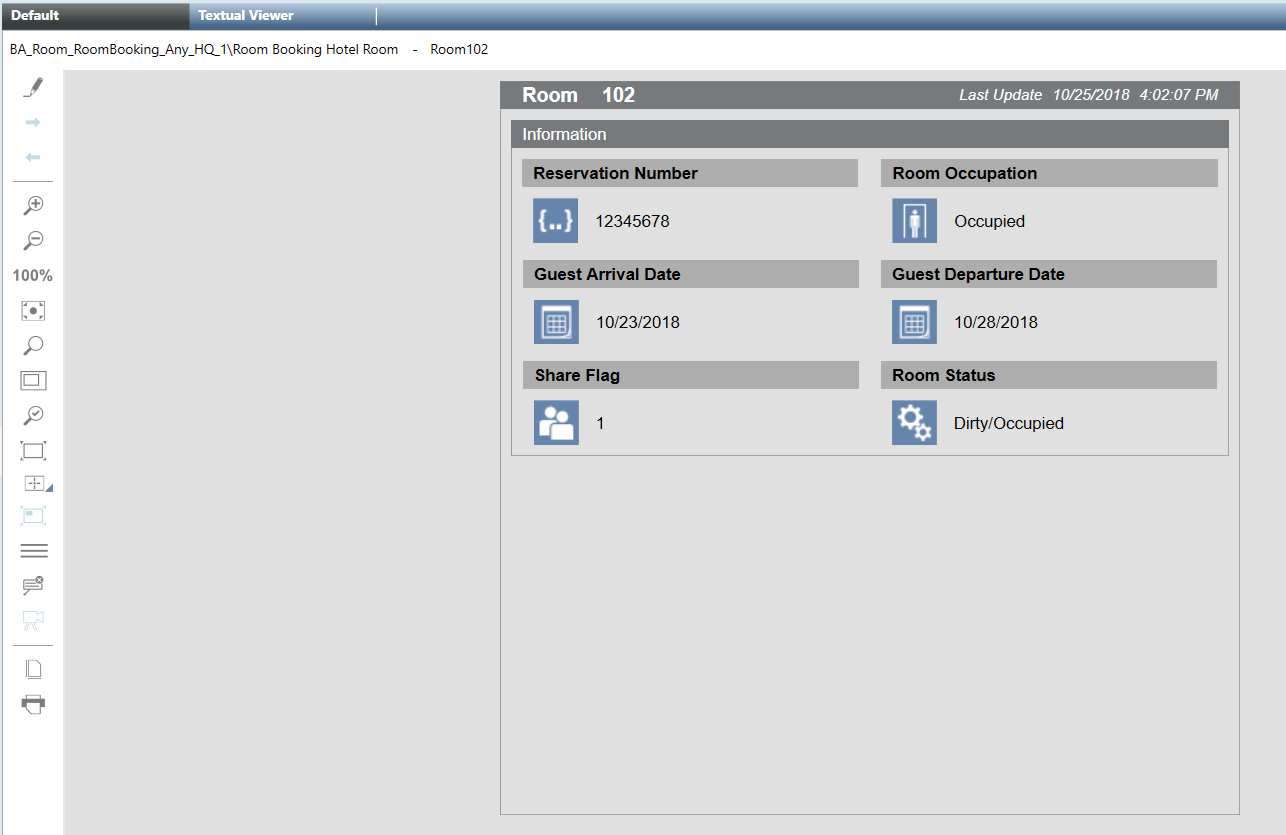

Room Booking Operating Graphic
Room Booking Operating Graphic
