Excel Template for Configuring External Settings in Energy Reports

To configure additional parameters, such as tariff, meter fee or tax, for the energy reports, you must specify values in an excel template. This template is available in the Energy Reporting library that hosts the report templates. These report templates as well as the Excel templates are deployed to the Tomcat server during template synchronization.

However, you cannot configure the Excel templates directly from the Tomcat server, you must edit it from the Energy Reporting library. For information on editing the file, see Editing the Excel Template for Configuring External Settings in Energy Reports.

You can use either of the following Excel templates for configuring additional Energy Report parameters:

EnergyReportsExternalSetting.xlsx: Consumption Cost Report, Consumption Emissions Report, Consumption Performance Report, Consumption Budget Report

EnergyReportsExternalSettingHDD.xlsx: Consumption HDD Regression Line Report, Consumption Energy Signature Report, Consumption Degree Days Corrected Report

The parameters to be configured in the Excel templates for the different reports are as follows:

Area IDs

Name	Description
AreaID	Key ID for the area.
Description	Description of the area/zone to be associated with the building.

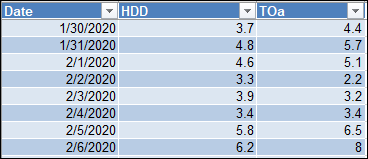

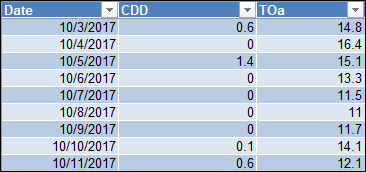

DegreeDaysType	Type of Degree Days, HDD or CDD.
TabDDLink	Name of the worksheet tab where the degree days are stored.
TabDDReferenceLink	Name of the worksheet tab where the degree days reference are stored. Used in Consumption_HDD_Corrected Report
HDDfactorLL	Low limit for the consumption factor creation. Used in Consumption_HDD_Corrected Report.
HDDfactorHL	High limit for the consumption factor creation. Used in Consumption_HDD_Corrected Report.
PercentageNotCorrected	Percentage of the consumption that will not be corrected by the Degree Days Factor. Used in Consumption_HDD_Corrected Report

Consumption Budget Report Parameters

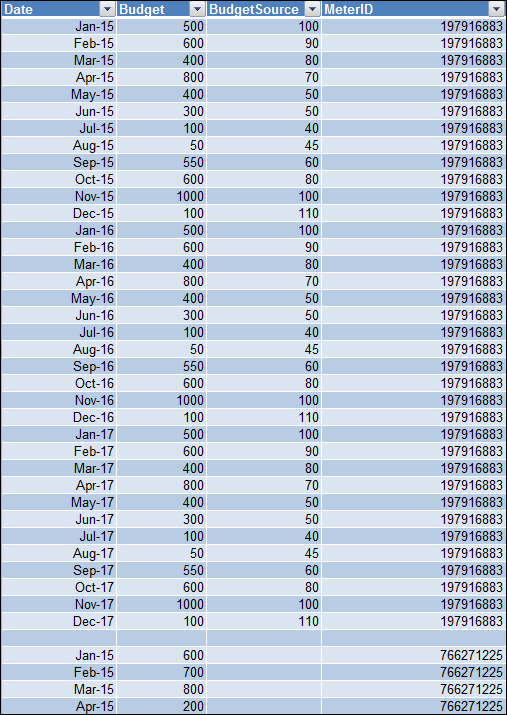

Budget
Name	Description	Additional Notes
Date	The month and year for which the budget is to be specified
Budget	Consumption budget planned for the month and year. This is for the main meter.
BudgetSource	Consumption budget planned for the month and year. This is for the source meter. This is applicable only if the managed meter has a source meter.
MeterID	ID of the managed meter for which the budget is to be specified. (Mandatory field)	You can view the IDs of the managed meters in your system on EnergyReportsExternalSetting.xlsx.
MeterName	Name of the managed meter to which this tariff is applicable. This is an optional field.	You can view the names of the managed meters in your system in EnergyReportsExternalSetting.xlsx.

Consumption Cost Report Parameters

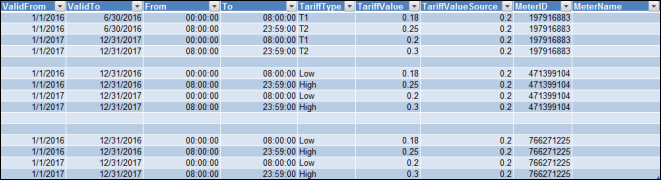

MeterTariffData
Name	Description	Additional Notes
ValidFrom	Start date from when the tariff is applicable.	The ValidTo must always be greater than Valid From For example, if tariff is applicable from 1^st January, 2016 to 31^st December, 2016, then the ValidFrom value will be 1^st January, 2016 and the ValidTo value will be 31^st December, 2016. If there is a change in the tariff from 1^st January, 2017, then you will have to add a new row for the same managed meter and provide the required information.
ValidTo	End date till which the tariff is applicable.
From	The start time from when the tariff is applicable.	There can be situations where more than one tariff is applicable according to time periods of the day. For example, from 09.00 to 20.00 HRS is the time of the day when the energy consumption is the maximum and from 20.01 to 08.59 HRS is a period when energy consumption is low. So, the tariff for the peak period may be different than the tariff for the non peak period. You can specify the start and end time period using the From and To fields.
To	The end time till which the tariff is applicable.
TariffType	Type of tariff according to the time period.	In this field, you can classify the tariffs according to the different time periods, for example, peak period tariffs (T1), low period tariffs (T2). The type of tariffs have to be identical for all the managed meters. For example, you can have tariff types that are identified as T1, T2 or tariff types that are identified as High, Low. However, you cannot have a combination of the different tariff types such as T1 and Low or T2 and High for the managed meters.
TariffValue	Value of the tariff according to the different types of tariffs identified. The tariff value specified here is for the main meter. For example, the value of peak period tariffs (T1) can be 0.75, the value of low period tariffs (T2) can be 0.50. The tariff value must be specified in the ouput media unit that has been set for the managed meter. For example, if the output media unit for the managed meter is set to MWh, then the tariff value must be specified in MWh units.
TariffValueSource	Tariff value for the source meter that is specified according to the different types of tariffs identified. The tariff value specified here is for the source meter The tariff value must be specified in the ouput media unit that has been set for the source meter. For example, if the output media unit for the source meter is set to m3, then the tariff value must be specified in m3 units. You need to specify a value in this field, only if the managed meter has a source meter configured.	For information on the source meter and its configuration, see Overview of Managed Meters and Managed Meters Workspace.
MeterID	ID of the managed meter to which this tariff is applicable. (Mandatory field)	You can view the IDs of the managed meters in your system on EnergyReportsExternalSetting.xlsx.
MeterName	Name of the managed meter to which this tariff is applicable. Optional field)	You can view the names of the managed meters in your system on EnergyReportsExternalSetting.xlsx.

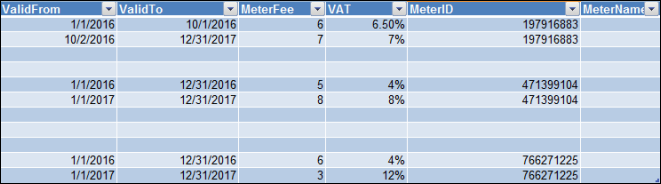

MeterVatFee
Name	Description	Additional Notes
ValidFrom	Start Date from when the VAT and meter fee is applicable.	The ValidTo must always be greater than Valid From. For example, if the VAT is applicable from 1^st January, 2016 to 31^st December, 2016, then the ValidFrom value will be 1^st January, 2016 and the ValidTo value will be 31^st December, 2016 If there is a change in the VAT and meter fee from 1^st January, 2017, you will have to add a new row for the same managed meter with the above information.
ValidTo	End Date till which the VAT and meter fee is applicable.
MeterFee	Amount charged by the power supplier towards the rental of the meter.	Enter the meter fee on a per month basis.
VAT	Percentage of tax applied on the bill amount.
MeterID	ID of the meter to which the VAT and meter fee is applicable. This is a mandatory field.	You can view the IDs of the managed meters in your system on EnergyReportsExternalSetting.xlsx.
MeterName	Name of the managed meter to which the VAT and meter fee is applicable. This is an optional field.	You can view the names of the managed meters in your system on EnergyReportsExternalSetting.xlsx.

Consumption Emissions Report Parameters

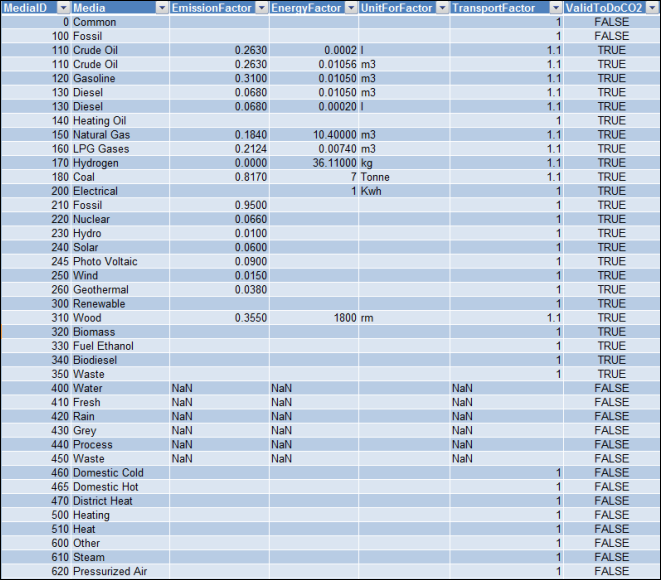

Media Emission
Name	Description	Additional Notes
MediaID	Specify the ID of the media. The MediaID can be obtained from the Media text group.	The Excel template already contains the Media ID from the Headquarter library.
Media	Specify the type of media. The name of the media can be obtained from the Media text group.	The Excel template already contains the name of the media from the Headquarter library.
Emission Factor	Specify the quantum of the emission factor that was released in the environment as a result of the energy generation process using the specified media.	An emission factor provides information on the quantum of pollutants released in the environment as a result of energy generated from a specific medium. For example, by generating 1 KWh of electricity using nuclear media, an approximate 0.0660 kg of carbon dioxide is released in the environment.
EnergyFactor	Enter the value for the energy factor.	The energy factor is used to convert the consumption recorded in a unit other than KWh to KWh. For example, if the consumption is recorded in M3, then using the energy factor, you can convert the consumption in M3 to KWh. For more information, see CO2 Emissions in Consumption Emissions Report from the Overview of Energy Reporting section.
UnitForFactor	Enter the value of the unit for factor. The value of the UnitForFactor must be identical to the output unit of the managed meter and must be in the same case (upper or lower) as the output unit	For electricity meters whose MediaGroup is Electricity, you need to specify the UnitForFactor only for the MediaGroup. There is no need to specify the UnitForFactor for the media items in Electricity mediagroup.
TransportFactor	Specify the value for the transport factor.	Transport factor is the quantum of emission that is generated during the transport of the specific media.
ValidToDoCO2	Specify if the Consumption Emissions Report must perform calculations to calculate the emission as a result of the energy generation process using the specific media. The values to be specified in this field are TRUE or FALSE.	After the report is executed, If this field is set to TRUE, then the emission will be calculated and displayed in the report. If there is no media entry in the file, an error message will display upon execution. If this field is set to FALSE, it indicates that the emission is not to be calculated for the specific media and upon report execution the CO2 Emissions column is empty.

Consumption Performance Report Parameters

Meter Surface Covered
Name	Description	Additional Notes
MeterID	ID of the managed meter for which the performance parameter is to be configured. (Mandatory field)	You can view the IDs of the managed meters in your system in EnergyReportsExternalSetting.xlsx.
MeterName	Name of the managed meter for which the performance parameter is to be configured. (Optional field)	You can view the names of the managed meters in your system in EnergyReportsExternalSetting.xlsx.
SurfaceCovered	Area in square meter units (M²) that is covered by the managed meter
ValidToDoPerformance	Specify if the Consumption Performance Report must perform calculations on the specified managed meter to calculate it's performance. The values to be specified in this field are "True" or "False"	After the report is executed, If this field is set to "True", the performance is calculated and displayed in the report. If the managed meter entry is not present in the file, an error message will display upon execution. If this field is set to "False", it indicates that the performance is not to be calculated for the specific managed meter and upon execution, the Performance cons. Unit/m2 column in the report is empty.

Managed Meter Parameters

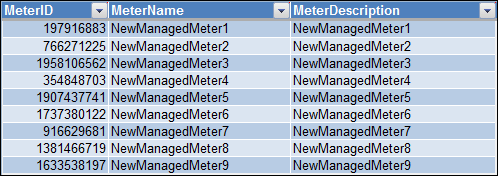

MeterIDList Worksheet
Name	Description	Additional Notes
MeterID	ID of the managed meter. (Mandatory field)	You can view the IDs of the managed meter in your system by configuring additional energy report parameters in Manually Executing Energy Reports.
MeterName	Name of the managed meter. (Optional field)	You can view the names of the managed meters in your system by configuring additional energy report parameters in Manually Executing Energy Reports.
MeterDescription	Description of the managed meter. (Optional field.)	You can view the description of the managed meters in your system by configuring additional energy report parameters in Manually Executing Energy Reports.

Consumption Heating/Cooling Degree Days Reports

The Consumption Heating/Cooling Degree Days Reports include the following reports:

Consumption_HDD_RegressionLine
Consumption_HDD_Corrected
Consumption_EnergySignature

Based on the report to be executed, the parameters in the EnergyReportsExternalSettingHDD.xlsx excel sheet will be referred for calculating the consumption.
