Adjusting the Energy Manager Configuration

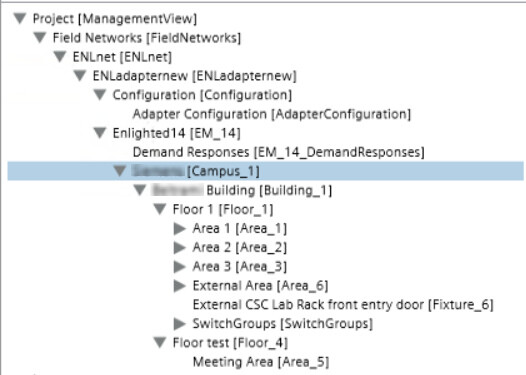

  1. In System Browser, select Project > Field Networks > [SORIS network] > [Enlighted adapter] > [Enlighted energy manager].
  2. In the Operation tab, do one or more of the following:
    • Next to the Host property, enter the IP address or the host name of the energy manager and click Save.
    • Next to the User property, enter the user that will query the manager and click Save.
    • Next to the Delay (sec) property, enter the appropriate polling interval of time in minutes and click Save.
    • Next to the Temperature Unit property, select the appropriate unit of temperature (°F or °C) and click Save.
    • Next to the API Key property, enter a valid and unique API code identifier for the user and click Save.
  3. To refresh the data to reflect the latest configuration, in the Extended Operation tab, next to the EM Configuration property, click Refresh.
  1. System Browser refreshes and displays the latest configuration.
