PTZ Panel

When you select a monitor in the video view that is connected to a PTZ camera, you can control pan-tilt-zoom settings of the camera from the Contextual pane. To do this select the Video Controls tab and then click PTZ. For related instructions see Control a PTZ Camera.

The panel includes control buttons for:

  • Panning and tilting the camera view
  • Selecting up to 6 presets
  • Controlling zoom

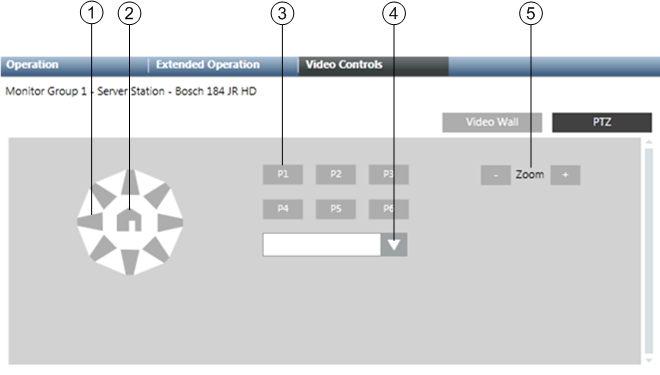

PTZ Control Panel

PTZ Panel Commands



Name

Description

1

Panning buttons (8 buttons)

Pan the camera view according to the directional buttons.

2

Home button

Activates preset 1.

3

Position buttons (6 buttons)

Activate presets 1-6.

4

Preset selection

Displays the drop-down list of presets of available selections. The first 6 presets in the alphabetically sorted list correspond to buttons P1-P6.

5

Zoom control buttons

Adjust the zoom factor.
