UPS RFC1628 Properties Configuration

The following table lists the properties and the relevant object identifier and type required to properly configure an RFC1628 UPS device manually.

Property

Object ID

Type

Alarm Description

1.3.6.1.2.1.33.1.6.2.1.2B

String

Alarms Present

1.3.6.1.2.1.33.1.6.1.0

Uint

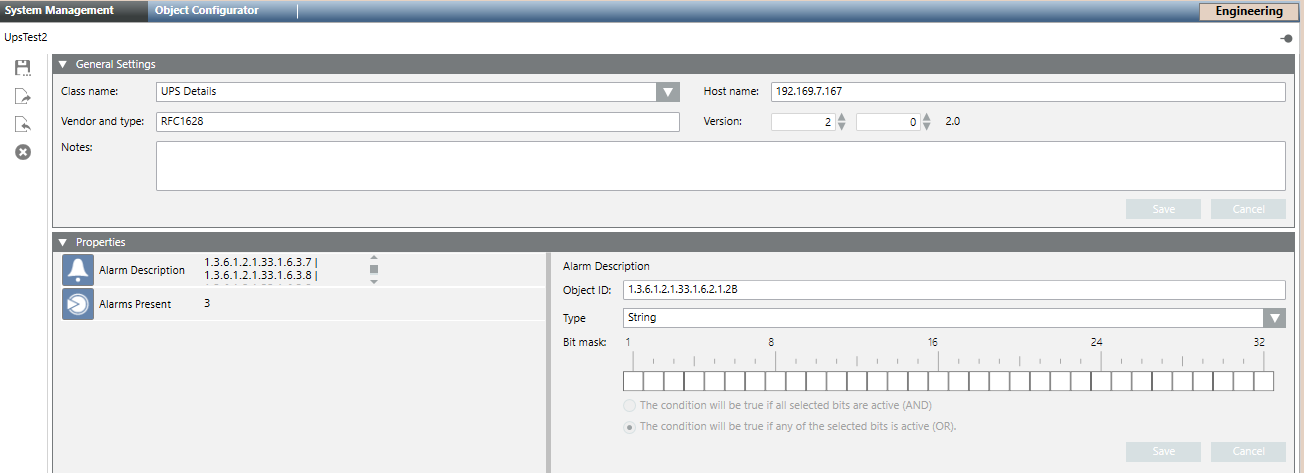

Example of RFC1628 UPS Device Configuration
Example of RFC1628 UPS Device Configuration
