UPS RFC1628 Compatibility and System Limits

Compatibility

  • RFC1628
  • Desigo CC V4.1 or higher

Size Limits

Since no specific limits are identified for this integration, refer to Desigo CC system limits defined in the System Description document (A6V10415500).

Configuration Limits

  • Symbols in the graphic never blink. This means that the operator cannot determine acked and unacked conditions from the graphics.

Other Limitations

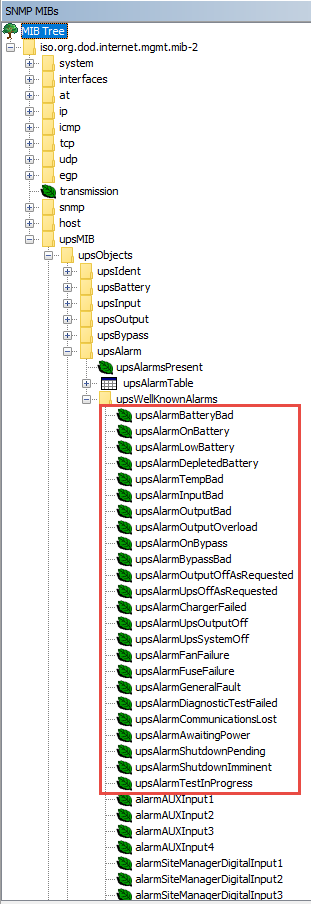

  • For this integration only the alarming for the first 24 UpsWellKnownAlarms from the standard RFC1628 MIB file is supported, as highlighted in red in the following figure:
