GAMMA Thermostats Graphic Templates

The following graphic templates are provided with this integration to graphically represent GAMMA RDF and RDG thermostats.

TEM_KNX_RDF6xx_None_001

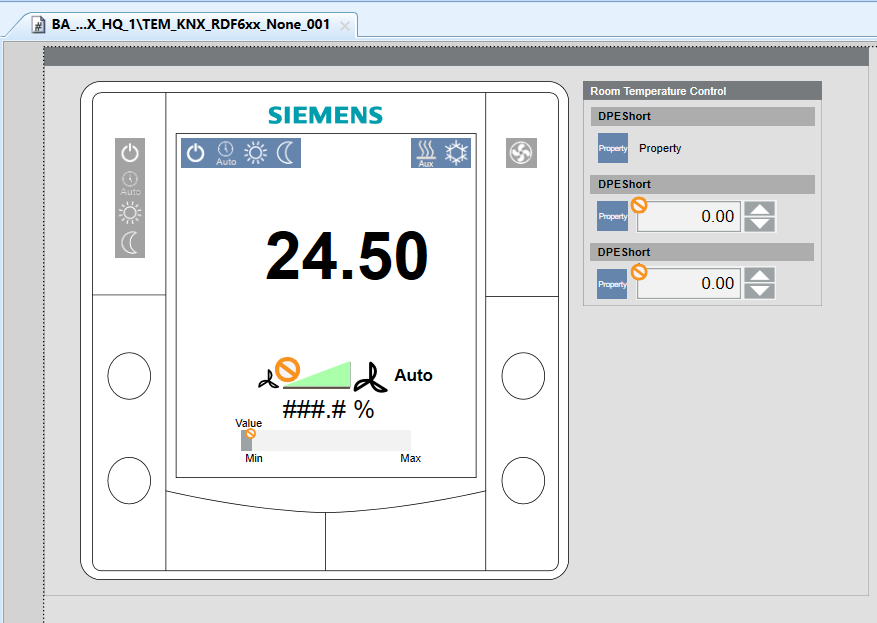

In Engineering mode, this is graphic template for the RDF600KN and RDF600KNS flush mount room thermostats.

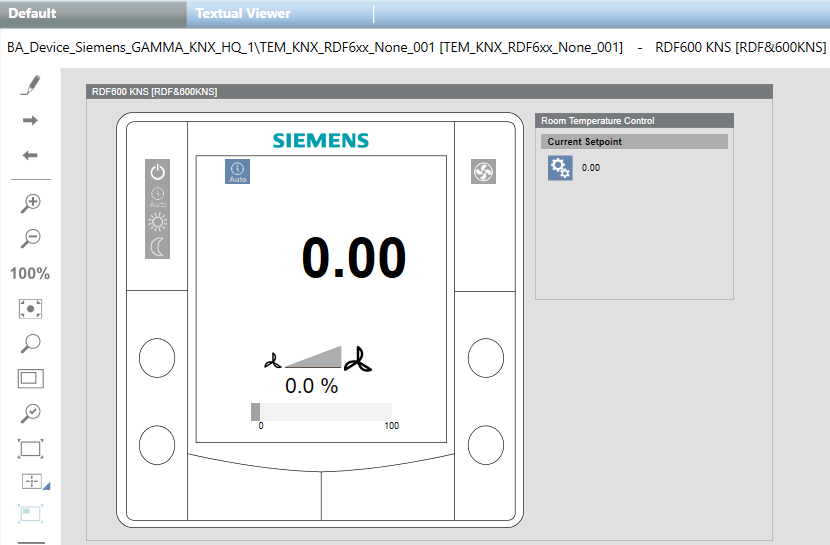

In Operating mode, this is the graphic for the RDF600KN and RDF600KNS flush mount room thermostats.

TEM_KNX_RDF8xx_None_001

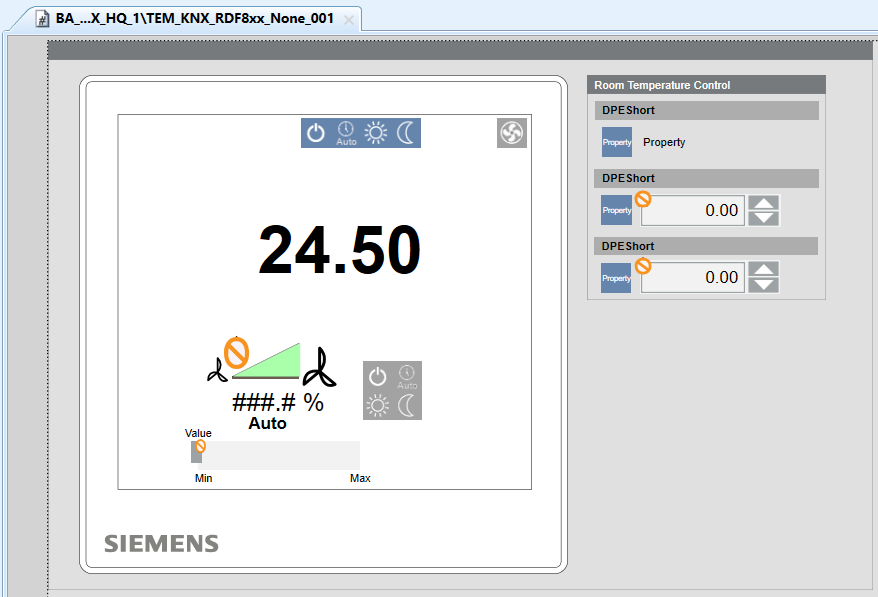

In Engineering mode, this is the graphic template for the RDF800KN and RDF880KN touchscreen flush mount room thermostats.

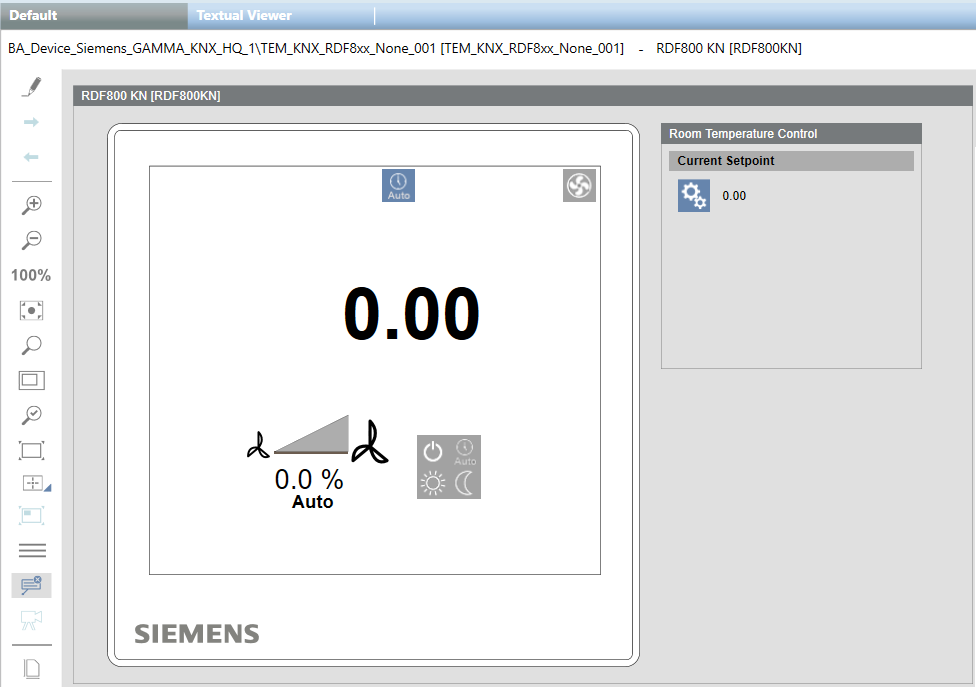

In Operating mode, this is the graphic for the RDF800KN and RDF880KN touchscreen flush mount room thermostats.

TEM_KNX_RDG1xx_None_001

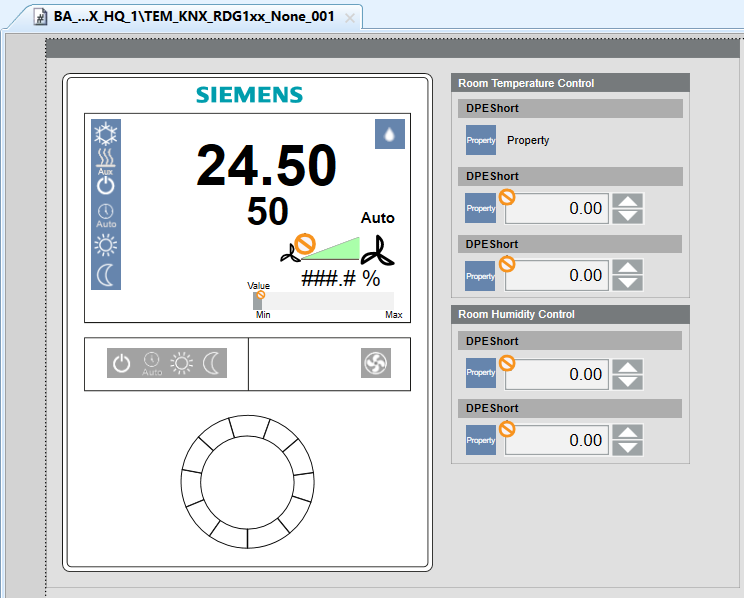

In Engineering mode, this is the graphic template for the RDG100KN, RDG160KN, and RDG165KN room thermostats.

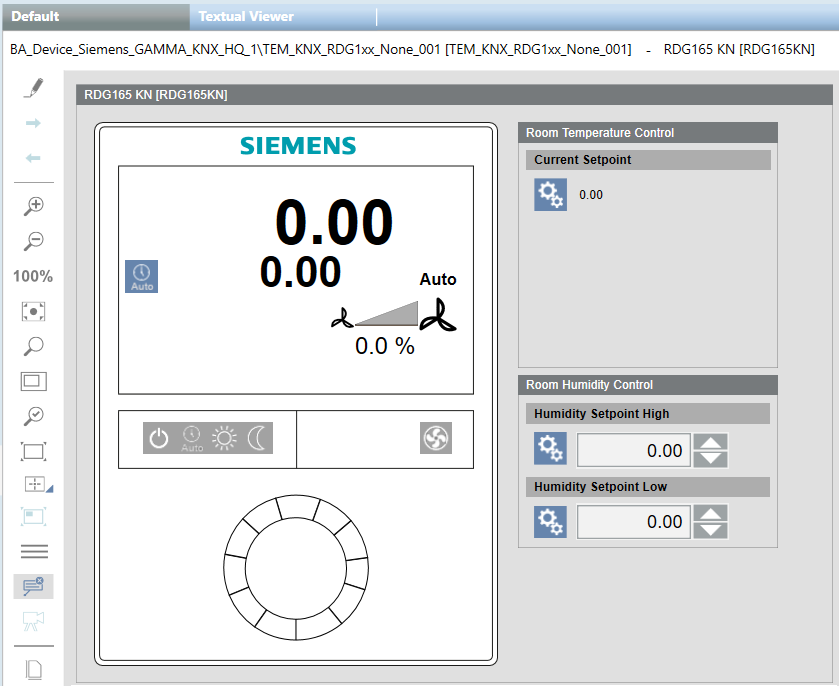

In Operating mode, this is the graphic for the RDF800KN, RDG100KN, RDG160KN, and RDG165KN room thermostats.

TEM_KNX_RDG2xx_None_001

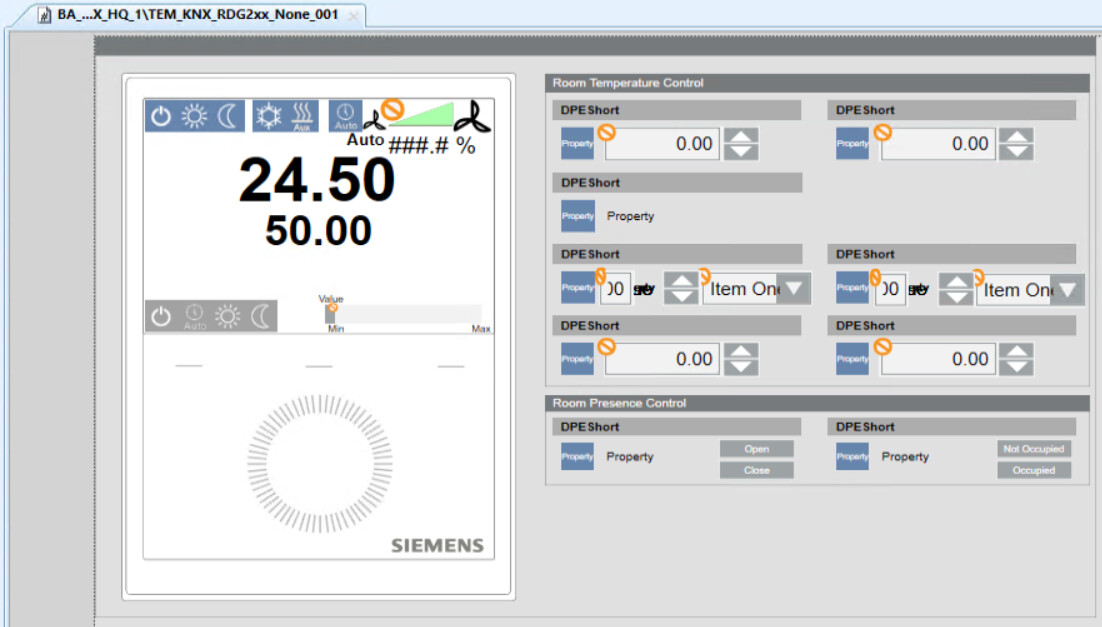

In Engineering mode, this is the graphic template for the RDG200KN and RDG260KN room thermostats.

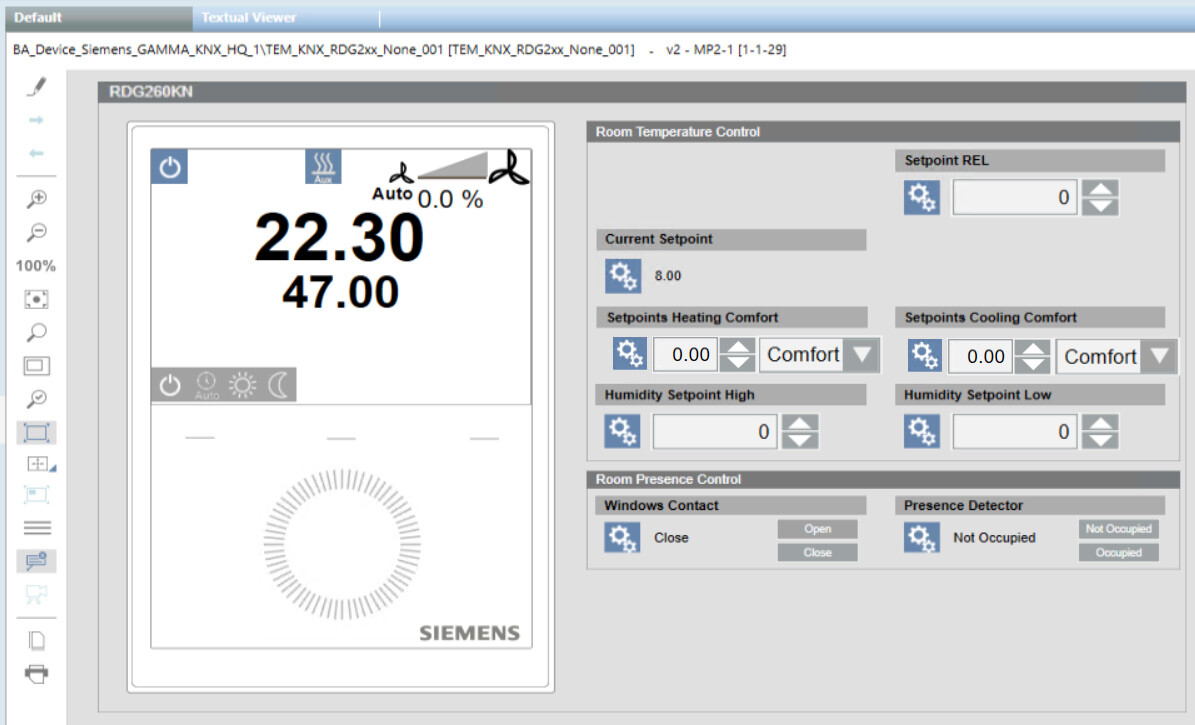

In Operating mode, template for the RDG200KN and RDG260KN room thermostats.

TEM_KNX_RDG4xx_None_001

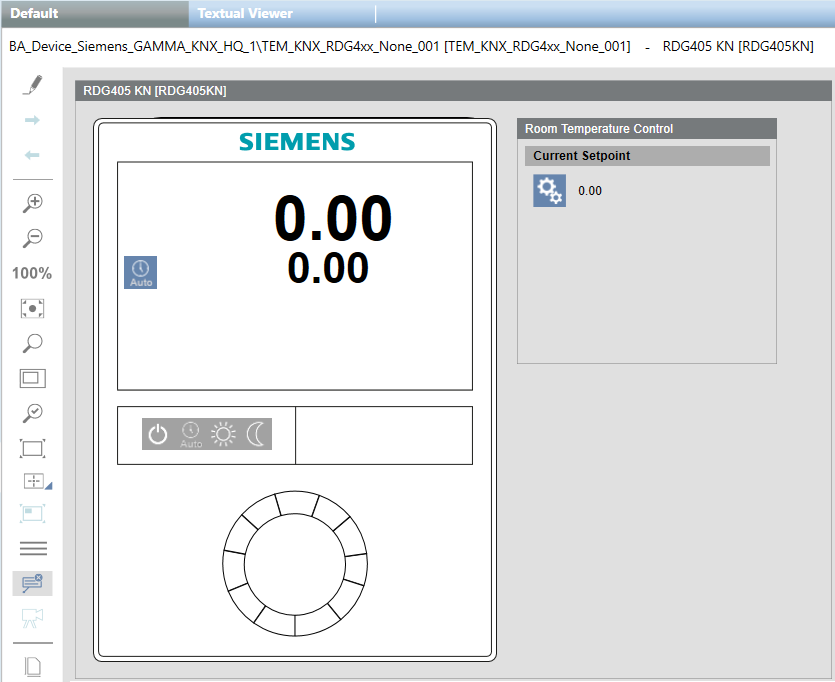

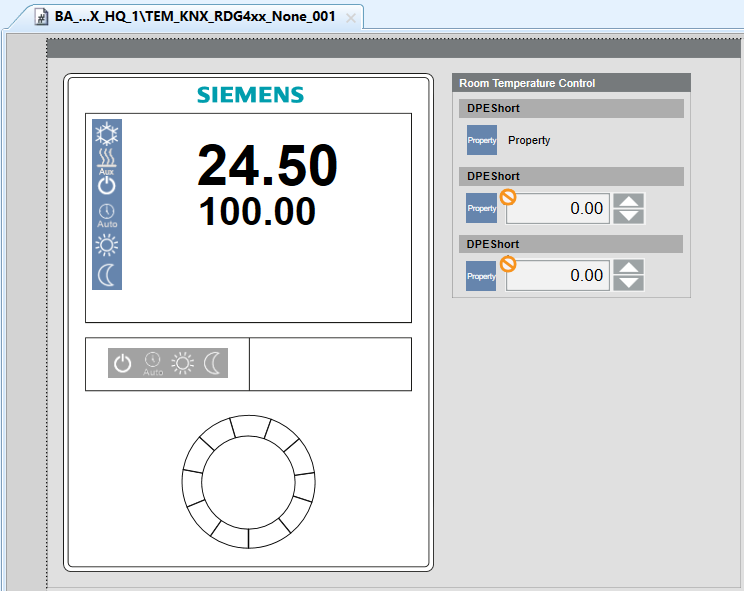

In Engineering mode, this is the graphic template for the RDG400KN and RDG405KN room thermostats.

In Operating mode, this is the graphic for the RDG400KN and RDG405KN room thermostats.
