Edit Common Event Object Alarms for Rooms

Scenario: A fault occurs in a room that is recognized by the system with the Common Event object and is displayed in the Summary Bar. All faults belonging to a room are displayed in the Common Event view. This also applies to objects that are not in the system database through Application Modelling.



Prerequisites:



Step:

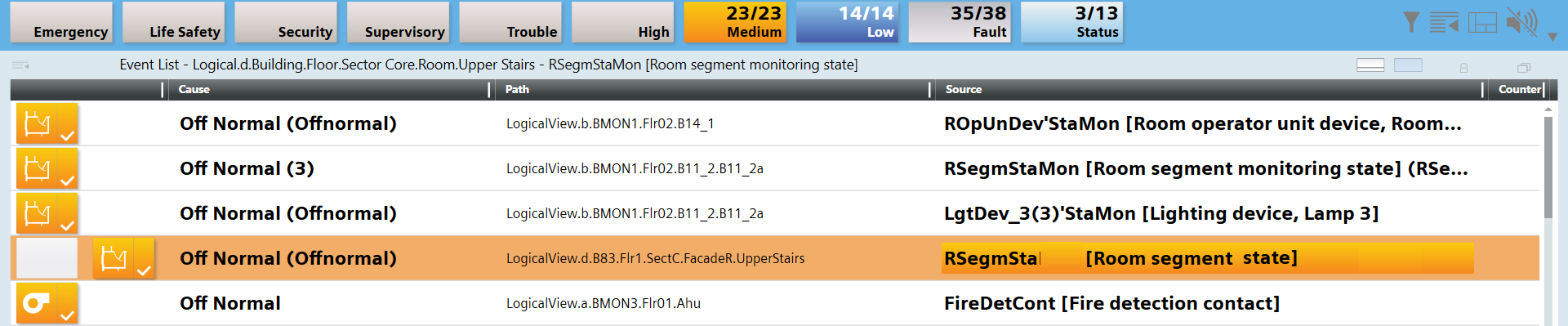

  1. On the Summary Bar, click an alarm category.
  2. Alarms are displayed with the filter in the Event Detail Bar.
  3. Select the alarm in the Event Detail Bar.
  4. The alarm is highlighted in color.
  5. In the Source column, select the alarm text.

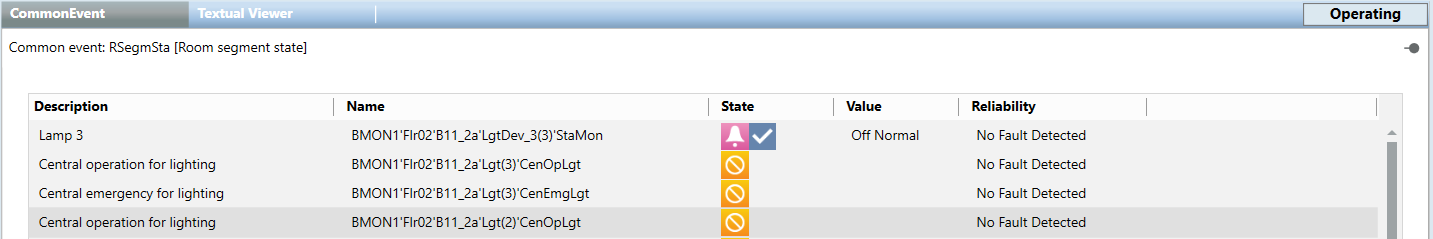

  6. The Common Event view is displayed. All the alarms in this segment are displayed. NOTE: There are situations, however, where the Common Event view cannot be opened directly. In this case, you must select the object [RSegmSta] Room segment status.
  7. Select the Related Items tab.
  8. Select the Device and corresponding link.
  1. The corresponding room service tool is opened to undertake additional analysis of faults.
