User Roles and Configuration Aspects

User Groups and Tasks

Object Model, Function, and Instance Applications

User Role

Tasks

HQ librarian

Creates extensions for:

Object Model for the HQ library
Function for the HQ library
Function for the most important third-party providers

RC librarian

Defines extensions for:

Localizing HQ libraries
Function for the RC library
Function for the most important local third-party providers

Project engineer

System house engineer

Defines extensions for:

Function for customized extensions
Function for unsupported third-party providers
Customizations as per end customers

Commissioning

engineer

Modifies Function for:

Project-specific extensions
Modifications as per customer wishes

Operator

Defines extensions in the Object Configurator, including:

Setting up alarm on the management platform
Defining data points for history records
Temporarily setting sensors or detectors out of service (Out of scan)

Definition

The following information must be defined in Object Models, Functions, and Objects for operating and monitoring to function properly:

View of individual object properties

Sequence of object priorities in the Operation and Extended Operation tab
Visibility of object properties in the Operation and Extended Operation tab
Visibility of object properties in Graphics
Visibility of object properties in Configuration
Assign icon

View of individual object properties in the BACnet Configurator
Display object texts

Discipline category
Search criteria
Attribute texts
Translations

Configuration of the Status and Commands window for the graphic

Visibility of object properties in Graphics

Alarm configuration

From the field system.
Created on the management platform

Command objects

Acknowledge alarm
Change of values

Symbol selection for a graphics page

Drag-and-drop selection
Graphic templates

Security (rights and privileges)

User groups, which can then be used for security settings

Recording values
Organizing related items

Examples of Configurations to be Created

Command objects

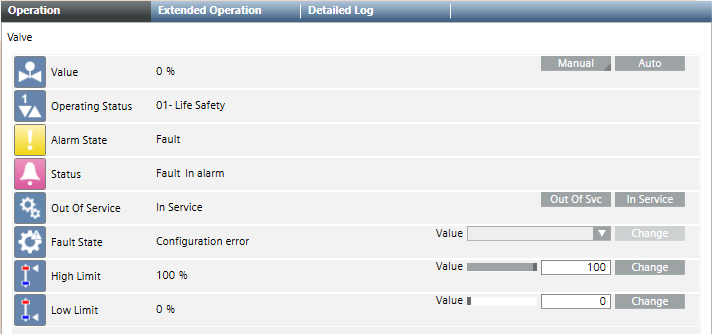

Operation in the Operation tab

Status and Commands window for the graphic
