Kabona WDC Symbols

When integrating the Kabona WDC extension, the symbols in the Symbol List below are available in graphics and associated to the Desigo CC functions.

NOTE: Many of the symbols have parameter properties that you can set to adjust the graphic as necessary to represent your system.

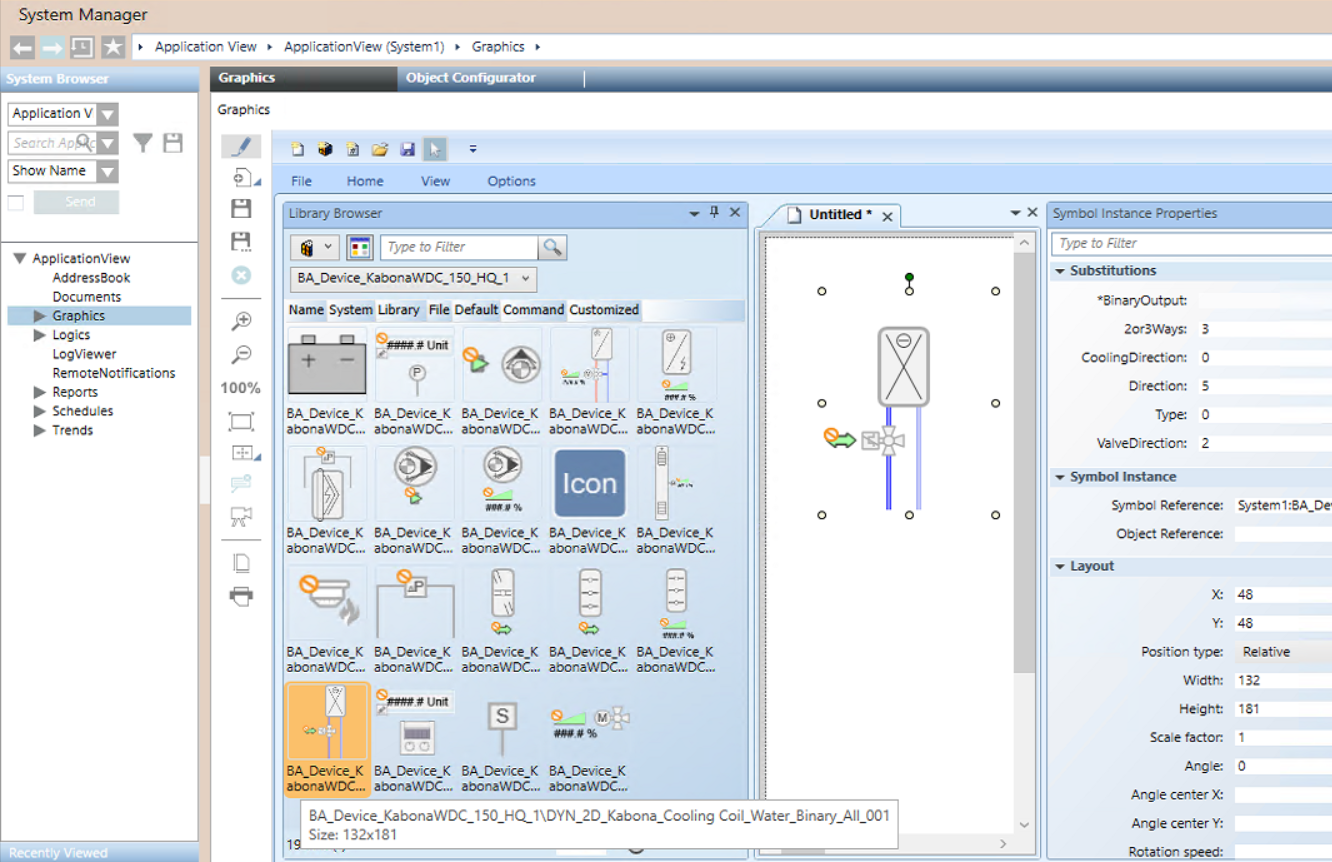

As illustrated in the example below, a set of Substitutions can be configured to set:

The input/output signal represented in the graphic symbol:
Drag the corresponding node from System Browser into the Object Reference field.
Graphical options, typically based on a numeric value:
Change the numeric value to adjust the symbol as necessary.
Typical range is from 0 to 4. Note that:
- In Pump e Fan symbols, you can modify the symbol Style.
- In digital objects, you can set Unit of measure and Precision.

In the Graphic Editor, to use this symbol in your graphic, drag it from the Library Browser (see note 1 below), and set the required Substitutions (see note 2) in the Symbol Instance Properties.

Notes

To display the Library Browser, do the following:
a. In Graphics Editor, select the View tab.
b. Select Library Browser

To search for the appropriate symbol:
a. Select the BA_Device_KabonaWDC_150_HQ1 library from the drop-down list.
b. Use the Type to Filter box to filter based on the symbol name.

A substitution with an asterisk (*) means that this substitution corresponds with the object reference and drag-and-drop is not allowed in that field.
In this case, drag the point corresponding to this substitution into the Object Reference field.

Symbol List

DYN_2D_Kabona_Battery_Storage_None_Vertical_001

Symbol for Kabona WDC Battery
DYN_2D_Kabona_Sensor_Pressure_None_All_001

Symbol for Kabona WDC Pressure Sensor
Engineering the symbol
Substitutions	Setting
BoxWidth	Width of data field. Default is 76. Adjust it based on the required Precision.
Direction	Position of data box: 0=Top; 1=Bottom; 2=Left; 4=Right
DisplayBox	0=no data box border; 1=show data box border
Precision	Defines the resolution of the data value (decimal digits). Default is 2.
DYN_2D_Kabona_Pump_None_Binary_All_001

Symbol for Kabona WDC Pump (Binary object)
Engineering the symbol
Substitutions	Setting
Direction	Position of icon: 0=Down; 1=Left; 2=Left
ExternalFeedback	Used or NotUsed
FlowDirection	Green arrow: 0=Left; 1=Right
Style	Symbol variant, 0 to 3
DYN_2D_Kabona_Pump_None_Binary_All_002

Symbol for Kabona WDC Pump with Alarm Icon (Binary object)
Engineering the symbol
Substitutions	Setting
Direction	Position of icon: 0=Down; 1=Left; 2=Left
ExternalFeedback	Used or NotUsed
FlowDirection	Green arrow: 0=Left; 1=Right
Style	Symbol variant, 0 to 3
DYN_2D_Kabona_HeatingCoil_Water_Analog_All_001

Symbol for Kabona WDC Water Heating Coil (Analog object)
Engineering the symbol
Substitutions	Setting
Direction	Position of data: 0=Down; 1=Right; 3=Left; 4=Top
HeatingDirection	0=Vertical; 1=Horizontal
Precision	Defines the resolution of the data value (decimal digits). Default is 2.
type	Note used
Units	Unit of measurement (for example, %)
Valve2or3Ways	2 or 3 to show a 2- or 3-way valve
DYN_2D_Kabona_HeatingCoil_Electric_Analog_All_001

Symbol for Kabona WDC Electric Heating Coil (Analog object)
Engineering the symbol
Substitutions	Setting
Direction	Position of data: 0=Down; 1=Right; 3=Left; 4=Top
HeatingCoilDirection	0=Vertical; 1=Horizontal
DYN_2D_Kabona_Filter_Air_Binary_All_001

Symbol for Kabona WDC Air Filter (Binary object)
Engineering the symbol
Substitutions	Setting
Direction	Position of data: 0=Top; 1=Bottom; 2=Left; 4=Right
FilterDirection	0=Vertical; 2=Horizontal
FilterType	Symbol variant, 0 to 3
DYN_2D_Kabona_Fan_Air_Binary_All_001

Symbol for Kabona WDC Air Fan (Binary object)
Engineering the symbol
Substitutions	Setting
Direction	Position of icon: 0=None: 1=Bottom; 1=Left
ExternalFeedback	Used or NotUsed
FanBinaryDirection	0=None; 1=Left; 2=Up; 3=Right; 4=Down
Fit2DPplusDuct	0=Single icon; 1=Dual icon
Style	Symbol variant, 0 to 3
DYN_2D_Kabona_Fan_Air_Binary_All_002

Symbol for Kabona WDC Air Fan with Alarm Icon (Binary object)
Engineering the symbol
Substitutions	Setting
Direction	Position of icon: 0=None: 1=Bottom; 1=Left
ExternalFeedback	Used or NotUsed
FanBinaryDirection	0=None; 1=Left; 2=Up; 3=Right; 4=Down
Fit2DPplusDuct	0=Single icon; 1=Dual icon
Style	Symbol variant, 0 to 3
DYN_2D_Kabona_Fan_Air_Analog_All_001

Symbol for Kabona WDC Air Fan (Analog object)
Engineering the symbol
Substitutions	Setting
Direction	Position of data: 0=None: 1=Bottom; 1=Left
ExternalFeedback	Used or NotUsed
FanVariableDirection	0=None; 1=Left; 2=Up; 3=Right; 4=Down
Fit2DPplusDuct	0=Single icon; 1=Dual icon
Style	Symbol variant, 0 to 3
DYN_2D_Kabona_Fan_Air_Analog_All_002

Symbol for Kabona WDC Air Fan with Alarm Icon (Analog object)
Engineering the symbol
Substitutions	Setting
Direction	Position of data: 0=None: 1=Bottom; 1=Left
ExternalFeedback	Used or NotUsed
FanVariableDirection	0=None; 1=Left; 2=Up; 3=Right; 4=Down
Fit2DPplusDuct	0=Single icon; 1=Dual icon
Style	Symbol variant, 0 to 3
DYN_2D_Kabona_Status_Component_All_001

Symbol for Kabona Components
DYN_2D_Kabona_EnergyRecovery_RotaryExchanger_Analog_Central_003

Symbol for Kabona WDC Energy Recovery Rotary Exchanger (Analog object)
Engineering the symbol
Substitutions	Setting
ExternalFeedback	Used or NotUsed
SpaceExtension	Vertical extension of the symbol, in pixels
Precision	Defines the resolution of the data value (decimal digits). Default is 2.
Units	Unit of measurement (for example, %)
DYN_2D_Kabona_Detector_Fire_Room_Central_001

Symbol for Kabona Fire Detector
Engineering the symbol
DYN_2D_Kabona_Detector_DeltaPressure_None_All_001

Symbol for Kabona Delta Pressure Detector
Engineering the symbol
Substitutions	Setting
Direction	0=None; 1=Up; 2=Right; 3=Down; 4=Left.
DYN_2D_Kabona_Damper_Fire_Binary_All_001

Symbol for Kabona WDC Fire Damper (Binary object)
Engineering the symbol
Substitutions	Setting
DamperDirection	1=Vertical; 2=Horizontal
Direction	Position of icon: 0=None; 1=Bottom; 2=Left; 3=Top; 4=Right
NormalOpen	0=Normally open; 1=Normally closed
DYN_2D_Kabona_Damper_Air_Binary_All_001

Symbol for Kabona Air Damper (Binary object)
Engineering the symbol
Substitutions	Setting
DamperDirection	1=Vertical; 2=Horizontal
Direction	Position of icon: 0=None; 1=Bottom; 2=Left; 3=Top; 4=Right
DYN_2D_Kabona_Damper_Air_Analog_All_001

Symbol for Kabona Air Damper (Analog object)
Engineering the symbol
Substitutions	Setting
DamperDirection	1=Vertical; 2=Horizontal
Direction	Position of data: 0=None; 1=Bottom; 2=Left; 3=Top; 4=Right
DYN_2D_Kabona_CoolingCoil_Water_Binary_All_001

Symbol for Kabona Water Cooling Coil
Engineering the symbol
Substitutions	Setting
2or3Ways	2 or 3 to show a 2- or 3-way valve
CoolingDirection	0=Vertical; 1=Horizontal
Direction	Position of icon: 0=None; 1=Right; 2=Down; 3=Left; 4=Up
Type	Symbol type, based on the BA graphic library
ValveDirection	0=None; 1=Down; 2=Left; 3=Up; 4=Right
DYN_2D_Kabona_RoomSensor_Temperature_Analog_Central_031

Symbol for Kabona WDC Room Temperature Sensor (Analog object)
Engineering the symbol
Substitutions	Setting
BoxWidth	Width of data field. Default is 76. Adjust it based on the required Precision.
Direction	Position of data box: 0=Bottom; 1=Left; 2=Top; 4=Right
DisplayBox	0=no data box border; 1=show data box border
Precision	Defines the resolution of the data value (decimal digits). Default is 2.
Units	Unit of measurement (for example, %)
DYN_2D_Kabona_Detector_Smoke_None_All_001

Symbol for Kabona Smoke Detector
Engineering the symbol
Substitutions	Setting
Direction	Position of probe: 0=None; 1=Up; 2=Right; 3=Down; 4=Left
DYN_2D_Kabona_Valve_None_Analog_All_001

Symbol for Kabona WDC Valve (Analog object)
Engineering the symbol
Substitutions	Setting
2or3Ways	2 or 3 to show a 2- or 3-way valve
Direction	Position of icon: 0=None; 1=Bottom; 2=Left; 3=Top; 4=Right
Precision	Defines the resolution of the data value (decimal digits). Default is 2.
Type	Symbol variant, 0 to 3
Units	Unit of measurement (for example, %)
ValveDirection	0=None; 1=Down; 2=Left; 3=Up; 4=Right

The blinking effect on symbols is not supported in this integration.
