Additional User Administration Procedures

Configure Session Timeout

1. Select the Extended Operation tab.
2. Select the Session Timeout property.
   a. The Session Timeout property shows the current value (Default: 10 min). Session timeout is a connection test between the server and the client and takes place every 30 seconds. The session is closed after the set period, if disconnected.
   b. Click Apply.



Configure Single Sign-On Token Lifetime

The Single Sign-On Token Lifetime property defines the maximum accepted logon (not for every request) response time for creating a connection between the Application Viewer and a web application. In other words, if the Application Viewer sends a request to a web application, such as the BIRT server, the application has to respond within the set period of time. The request expires if there is no response within the set period.

1. Select the Extended Operation tab.
2. Select the Single Sign-On Token Lifetime property.
3. The Single Sign-On Token Lifetime property displays the current value (default: 3 min).
3. Enter the new value.
4. Click Apply.

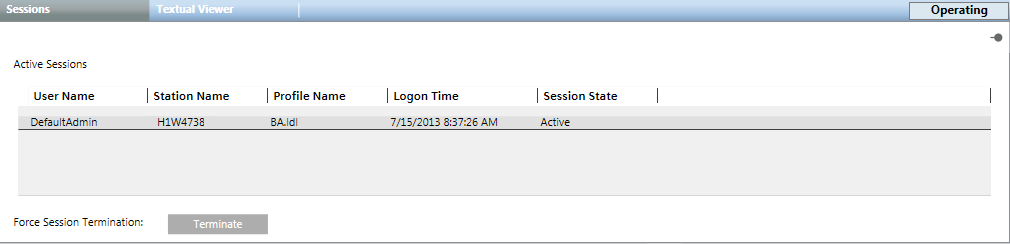

Display Active User Sessions

1. Select the Sessions tab.
2. All active sessions display with User Name, Station Name, Profile Name, Logon Time, and Session State.
2. (Optional) Select a session and click Terminate to close an active session.



Set Domain Name for Logon

The domain name needs to be set once when first logging onto Desigo CC.

1. Click the Extended Operation tab.
2. Select the Default Domain Name property.
   a. Enter the domain name, for example, DomainName\UserName.
   b. Click Apply.
