Set up Empty Filters

Scenario: Set up empty filters for subsequent filter configuration. You can do this later per customer requests. Typical filters include: Wall, doors, furniture, radiators, lighting, etc..



  • Edit is enabled in BIM Viewer.

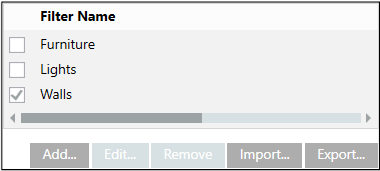

  1. Select Show/hide filter .

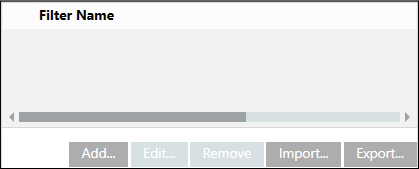

  • The Filter Name dialog box displays.
  1. Click Add.

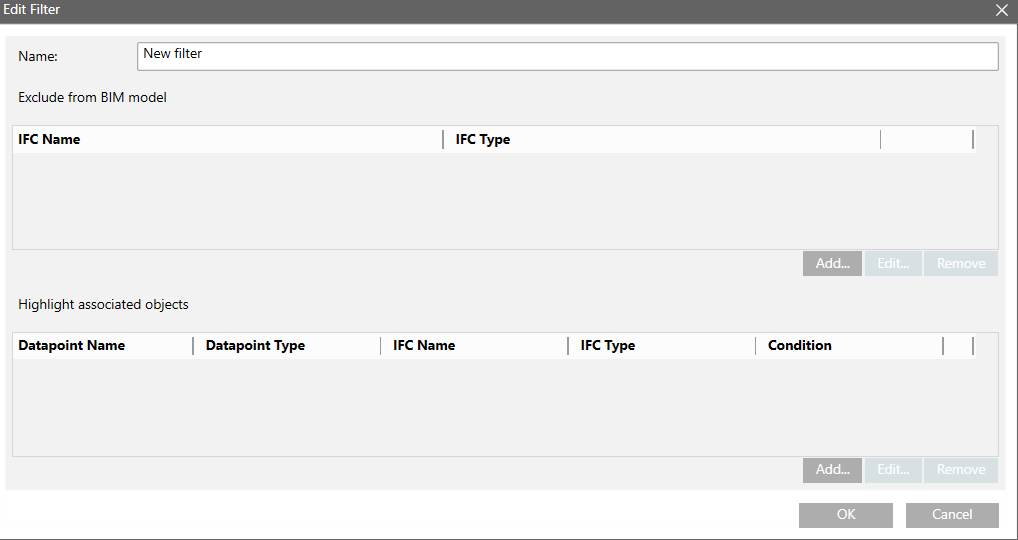

  • The Edit filter dialog box displays.
  1. Enter a filter name in the Name field.
  1. Click OK.
  1. Repeat Steps 2 to 4 for each new filter.
  1. Click Save .
