Modifying the Roger RACS5 Connection Parameters

If necessary, you can modify the connection parameters that you initially defined in the Configuration node.
You do that in the Roger RACS5 System<n> node, which corresponds to the affected Roger RACS5 system <n>, with <n> being the sequential system number, starting from 1.

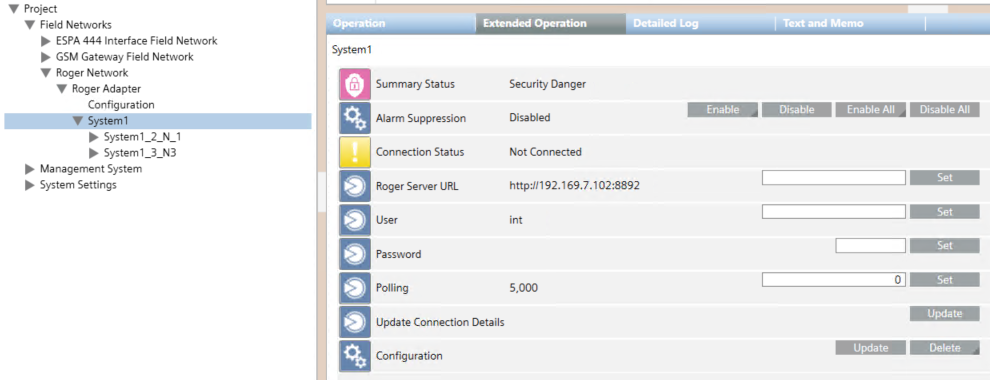

  1. Select Project > Field Networks > [SORIS network] > [Roger RACS5 Adapter] > [System<n>]
  2. In the Operation tab, modify the following connection parameters as necessary.
    • Roger Server URL (use a HTTPS IP address, except if local http://127.0.0.1)
    • User
    • Password
    • Polling rate (in milliseconds; values below 500 are not recommended)
      For each field to modify, enter the value and click SET.
  3. In Update Connection Details, click Update.
  1. The new configuration data is acquired and System Browser refreshes the Roger RACS5 system objects.
