GAMMA Sensors and Room Operator Units Graphic Templates

The following graphic templates are provided with this integration to graphically represent the GAMMA QMX3 sensors and room operator units.

TEM_KNX_QMX3_Px0_None_001

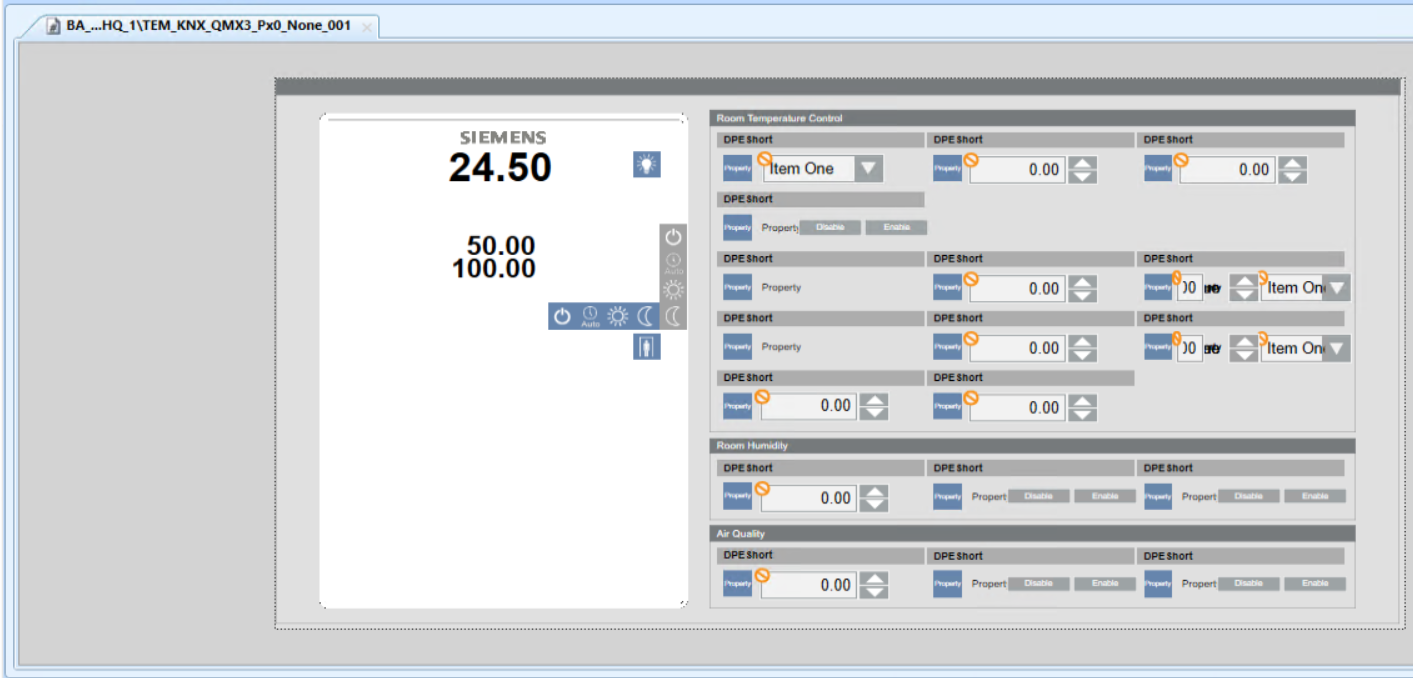

In Engineering mode, this is the graphic template for the QMX3 Px0 room sensor.

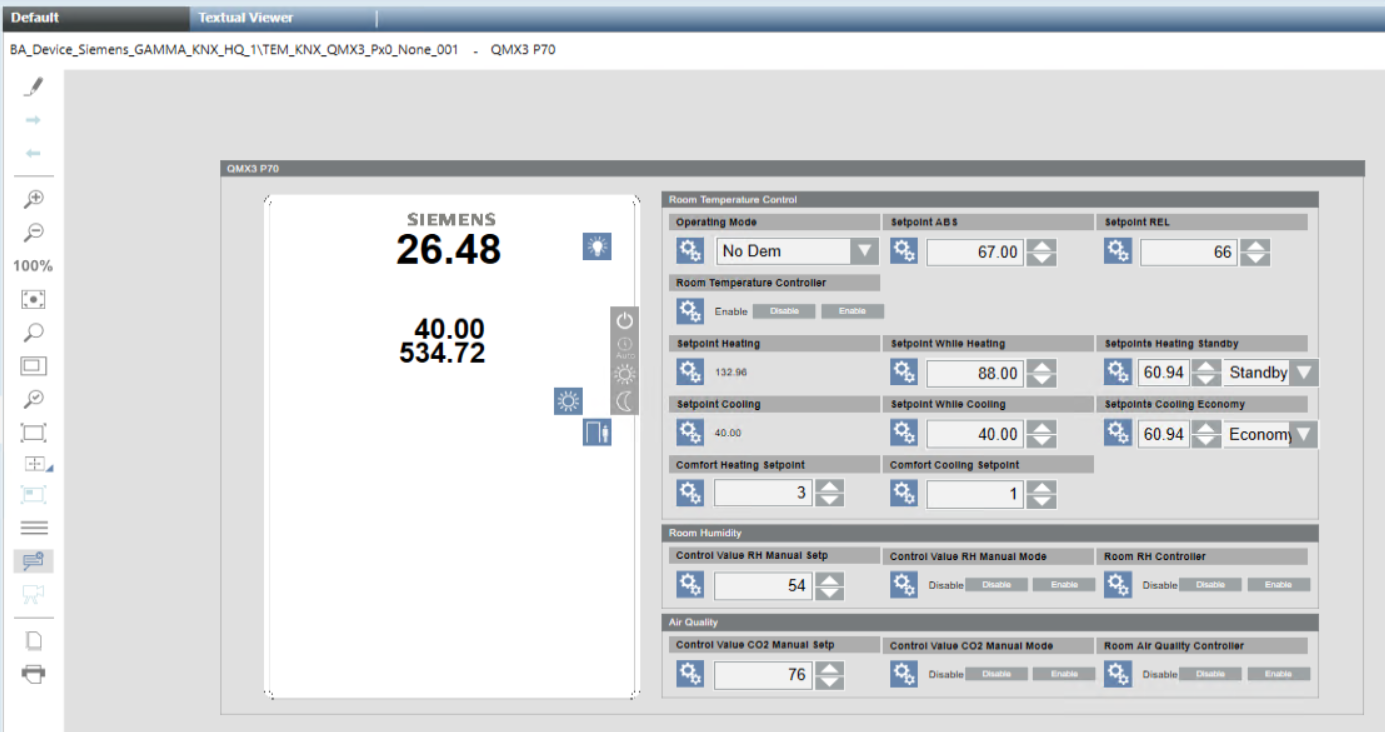

In Operating mode, this is the graphic for the QMX3 Px0 room sensor.

TEM_KNX_QMX3_Px2_None_001

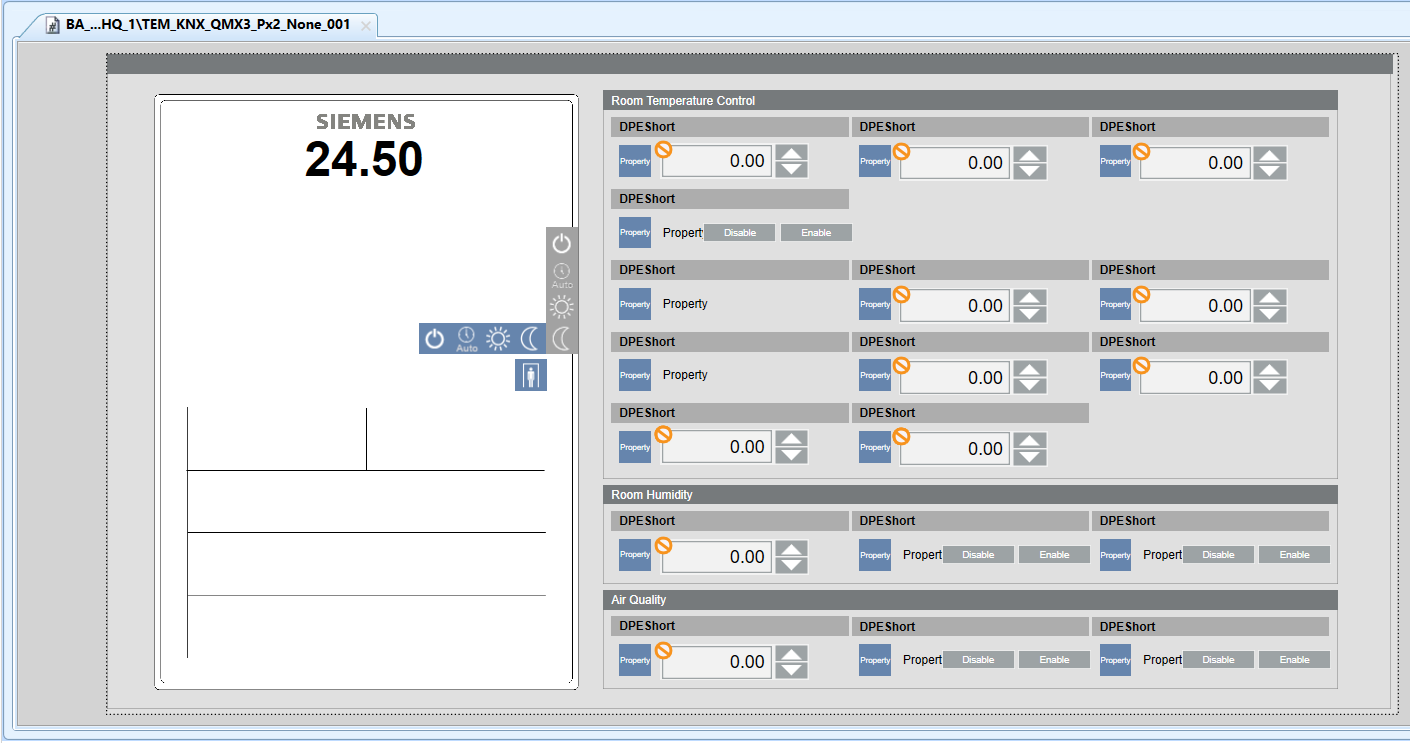

In Engineering mode, this is the graphic template for the QMX3 Px2 room sensor.

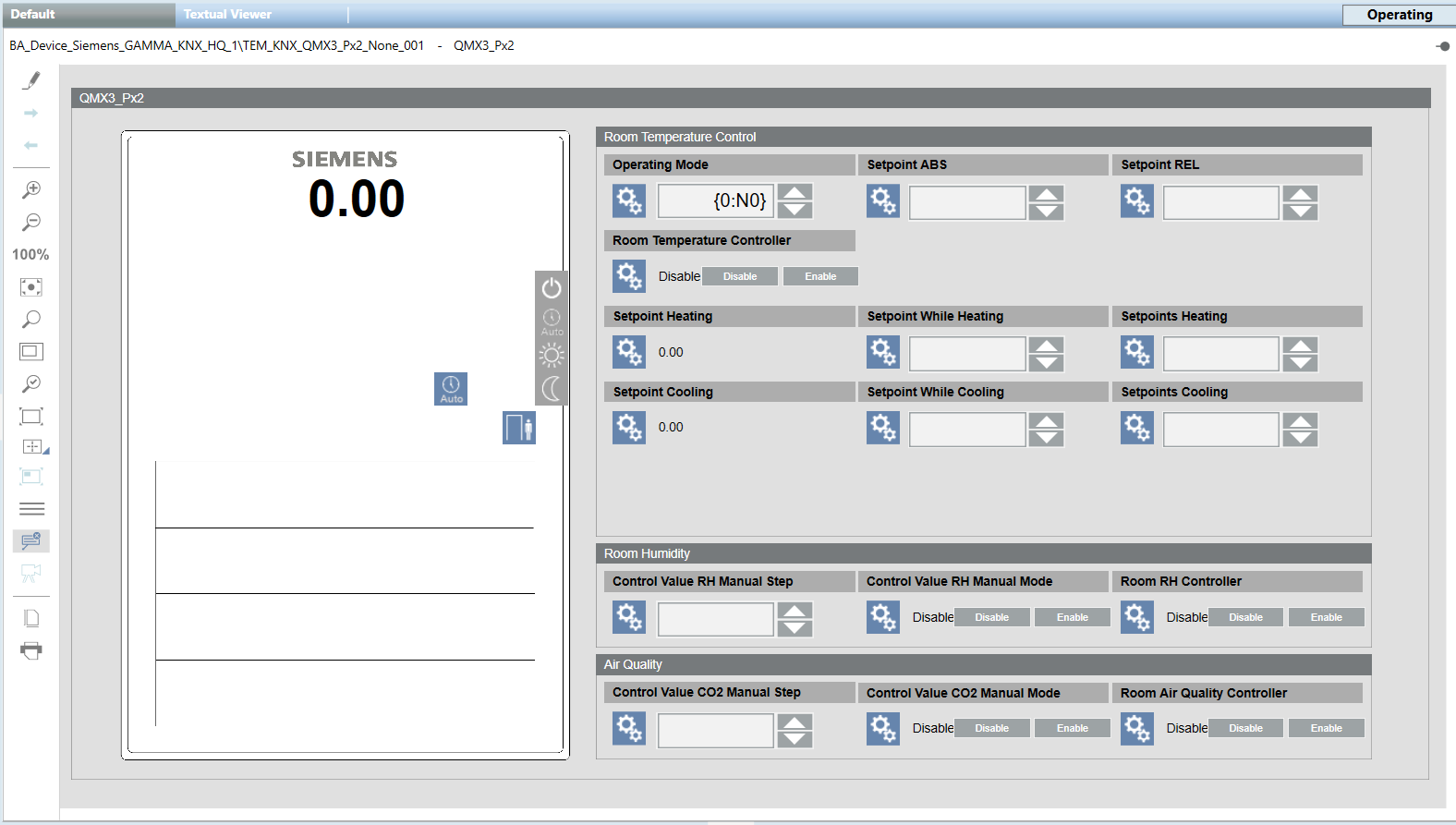

In Operating mode, this is the graphic for the QMX3 Px2 room sensor.

TEM_KNX_QMX3_Px4_None_001

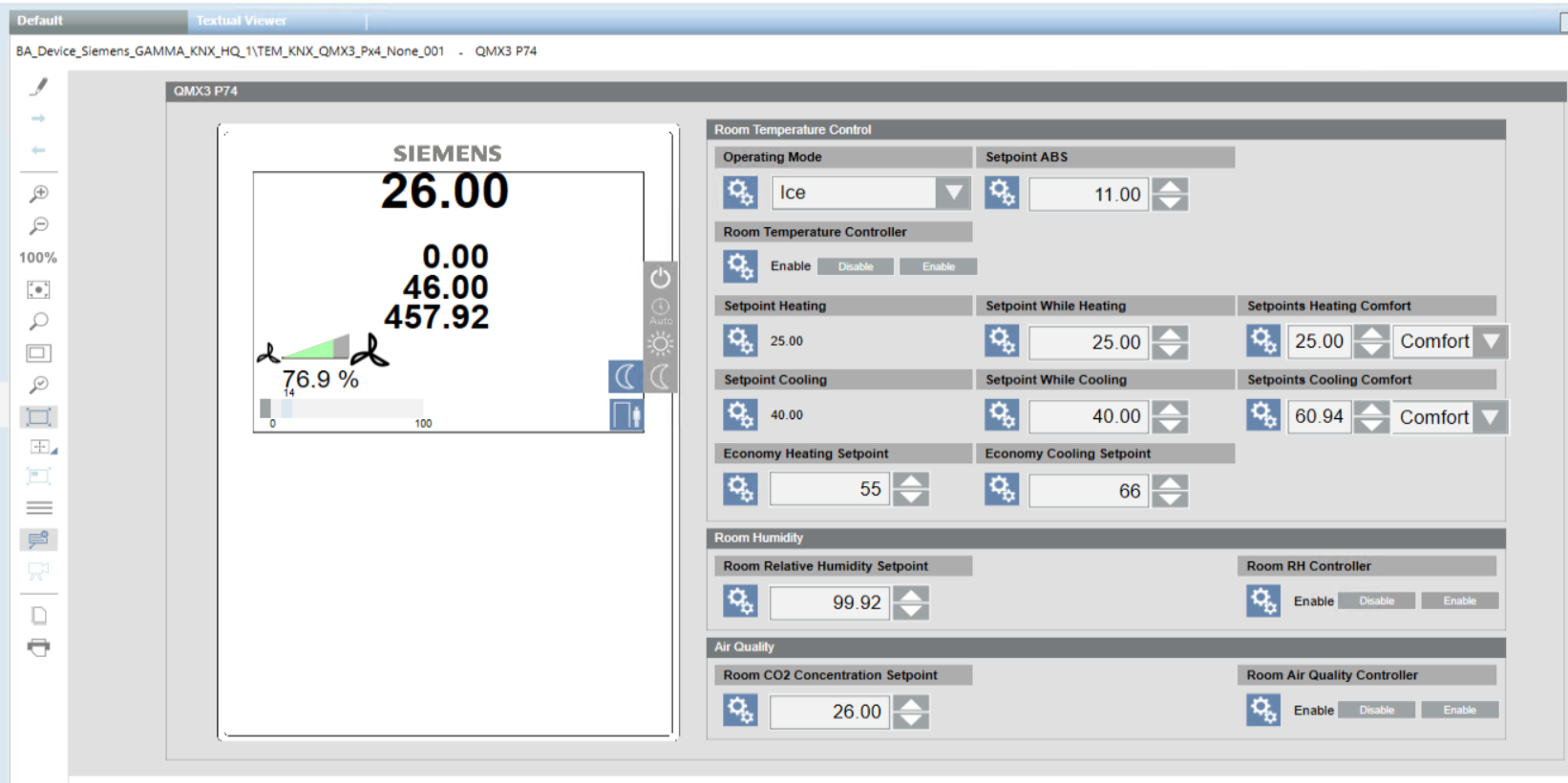

In Engineering mode, this is the graphic template for the QMX3 Px4 room sensor.

In Operating mode, this is the graphic for the QMX3 Px4 room sensor.

TEM_KNX_QMX3_Px7_None_001

In Engineering mode, this is the graphic template for the QMX3 Px7 room sensor.

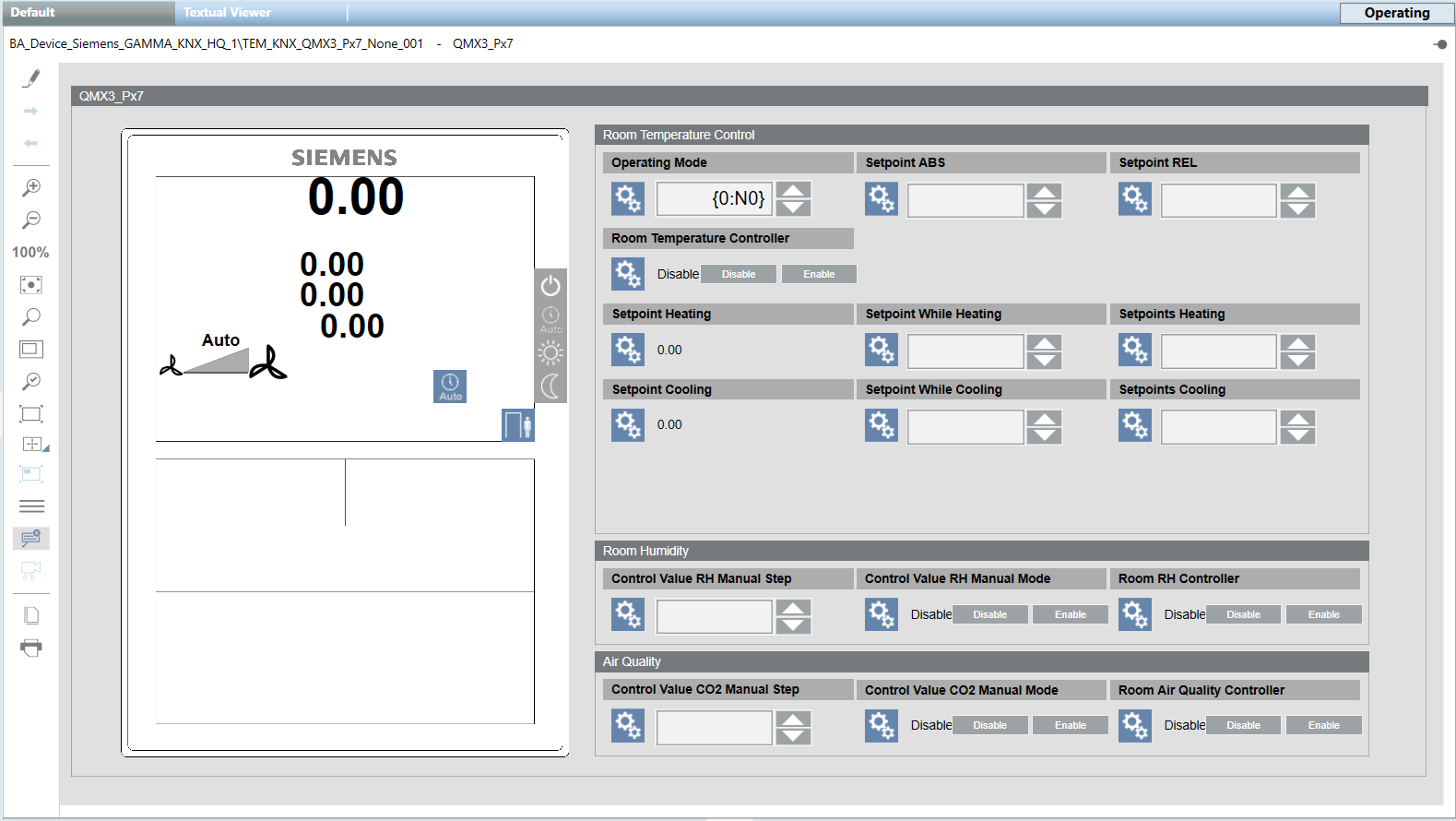

In Operating mode, this is the graphic for the QMX3 Px7 room sensor.
