Trend Chart Report with Multi-Axis
Trend Chart Report with Multi-Axis
This report is designed to show a maximum of 10 trends, each with an independent Y-axis. A parameter allows merging and combining the same category of trends in the same axis.

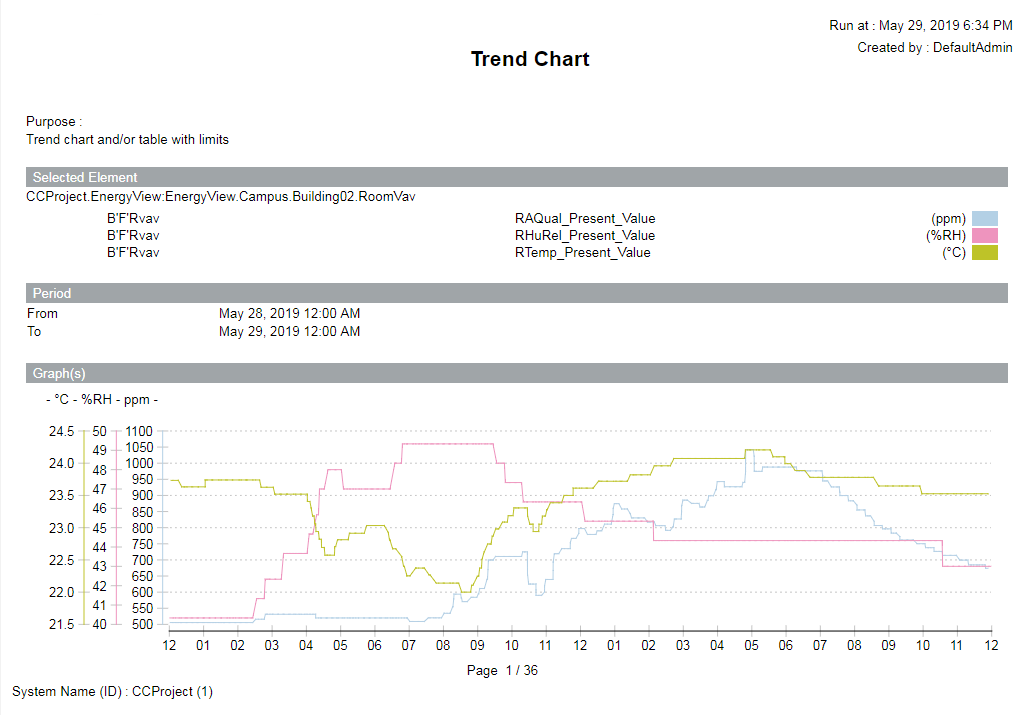

Sample report
Legend
Indicator | Description for Table | Description for Graphic |
! | Bad value | Bad value |
Pencil | Manual correction | Manual correction |
? | Fault | Not applicable |
A | Alarm | Not applicable |
OfS | Out of Service | Not applicable |
