Manually Discovering the ATS 4500 Configuration

As an alternative to the automatic discover, or to speed up a configuration alignment with the panels after a modification, you can manually start a discover procedure.

  1. In System Browser, select Project > Field Networks > [SORIS network] > [ATS 4500 Adapter].

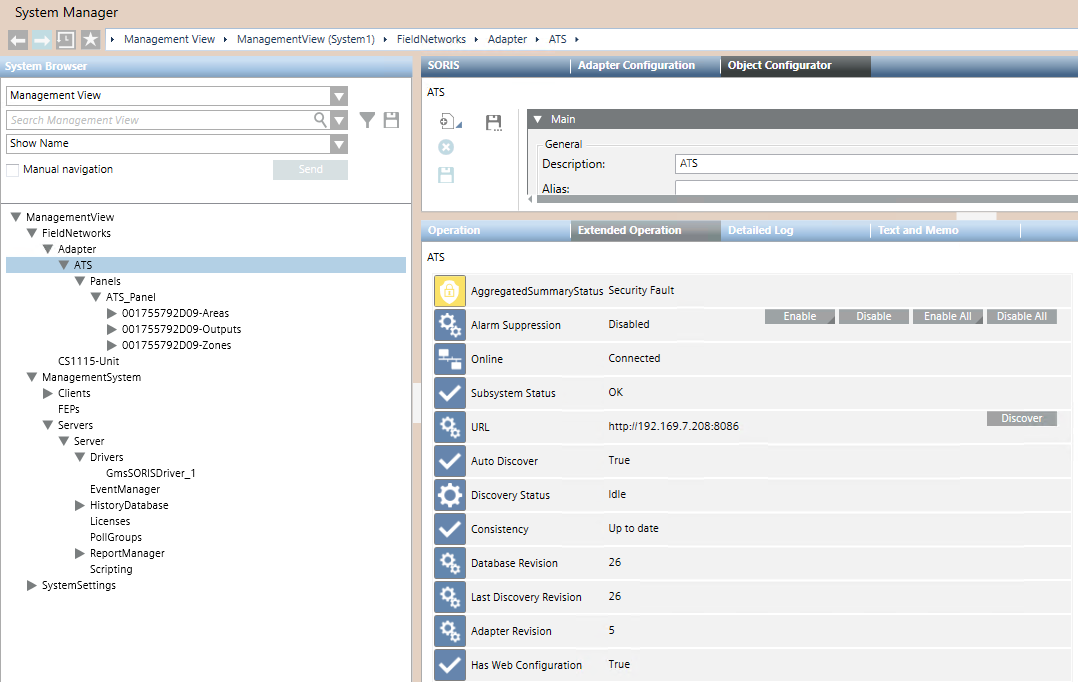

  2. In the Extended Operation tab, the Online property indicates Connected while the Discovery Status property indicates Idle.
  3. Next to the URL property, click Discover.
  1. System Browser displays the new ATS 4500 configuration.
