Set the Energy Managers

You can configure multiple energy managers under one SORIS Enlighted adapter.

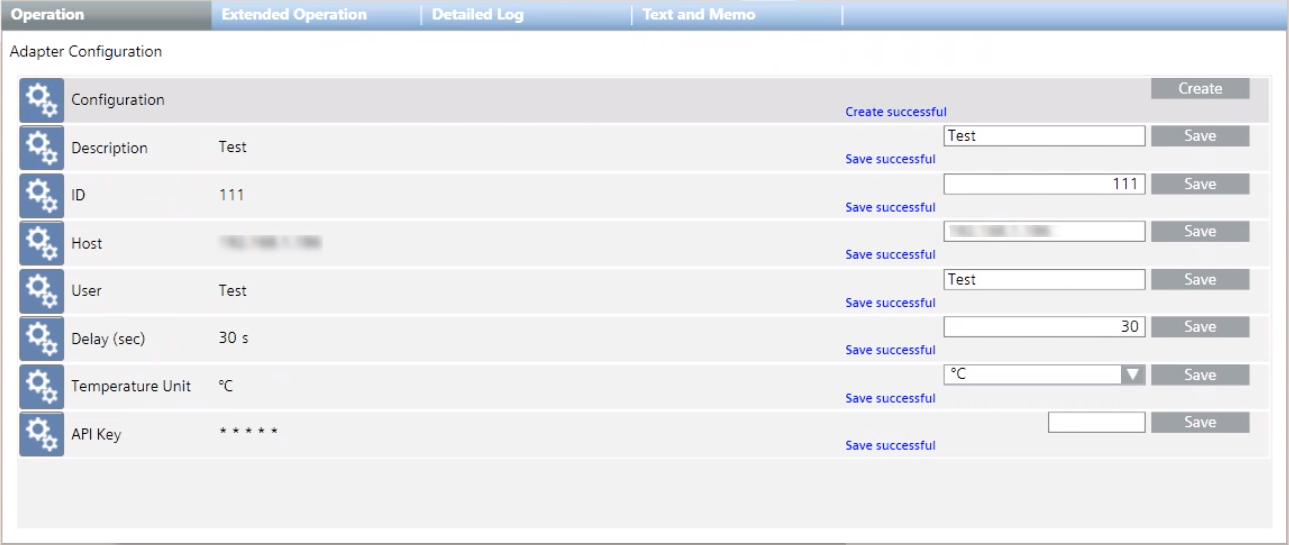

  1. In System Browser, select Project > Field Networks > [SORIS network] > [Enlighted adapter] > Configuration > Adapter Configuration.
  1. For each energy manager, in the Operation tab, specify the following parameters:
  • Next to the Description property, enter a descriptive text for the energy manager, and click Save.
  • Next to the ID property, enter the energy manager identifier, and click Save.
    NOTE: This identifier must be a unique value. It is an internal identifier that can be freely assigned in Desigo CC since it is not to be taken from the energy manager.
  • Next to the Host property, enter the IP address or the hostname of the energy manager, and click Save.
    NOTE: Since it is not the URL that is required, if you enter the hostname, do not include the https:// prefix in the name. For example, ENL-siemens.enlightedinc.com.
  • Next to the User property, enter the user that will query the manager, and click Save.
  • Next to the Delay (sec) property, enter the polling interval of time in seconds, and click Save.
  • Next to the Temperature Unit property, select the appropriate unit of temperature (°F or °C), and click Save.
  • Next to the API Key property, paste the given unique user API code identifier (see 1 – Retrieve User API Key), and click Save.
