From Desigo CC, in System Browser, select the main adapter node and then select the Adapter Configuration tab. Alternatively, from a browser, open the page: http:\<adapter_IP_address>:adapter_port\.applications

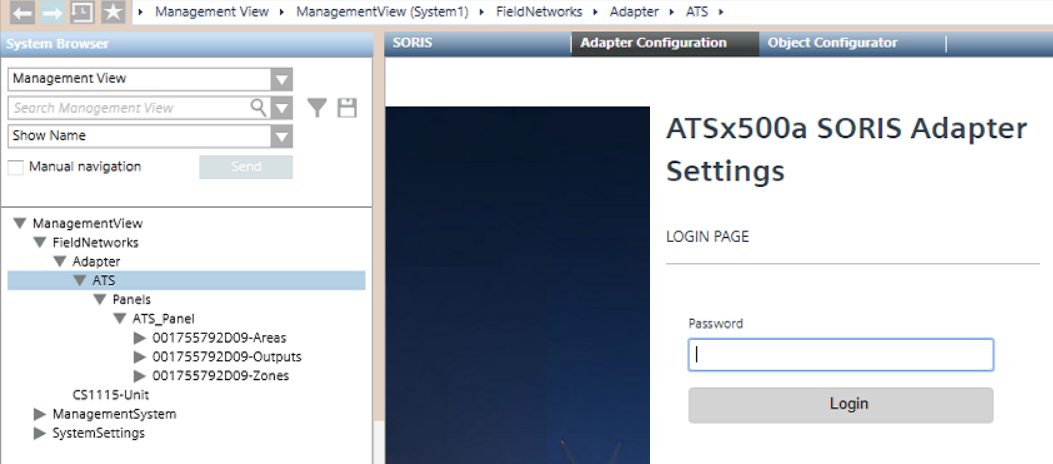

The login page of ATSx500a SORIS Settings displays.
At first start, you are prompted to enter and confirm a password, which you can then enter to access the tool afterwards.
Enter the password and click Login.

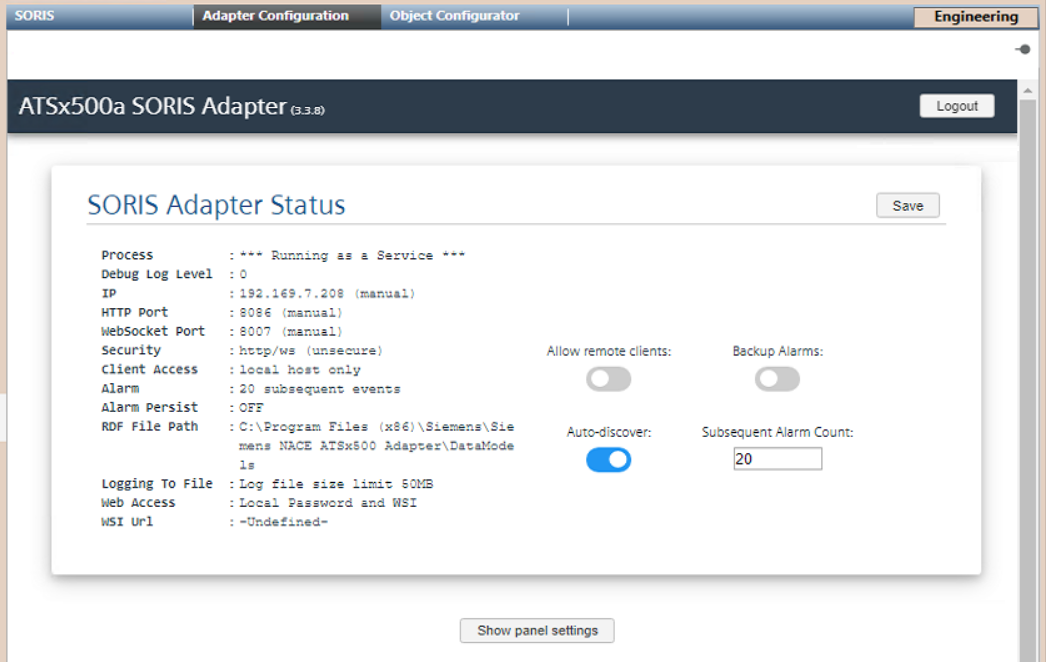

The SORIS Adapter Status tool page displays.
Enable Auto-discover to let the adapter synchronize the management station after this configuration procedure.
If necessary, configure the other parameters:
Allow remote clients (if available), to set if the adapter is installed on a separate PC.
Backup Alarms (if available), to enable the alarm logging.
Subsequent Alarm Count, to adjust the number of subsequent alarms stored for each object (default is 20).
