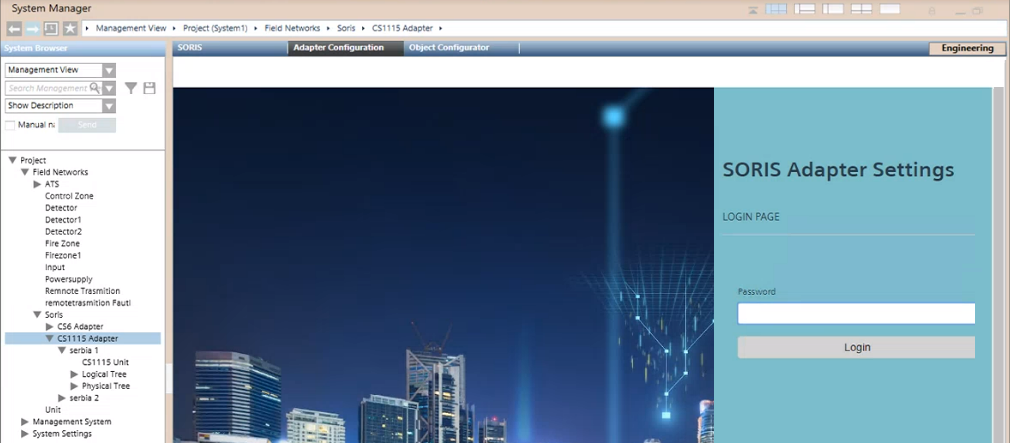

From Desigo CC, in System Browser, select the main adapter node and then select the Adapter Configuration tab. Alternatively, from a browser, open the page: https:\<adapter_IP_address>:adapter_port\.applications
The login page of the CS1115 SORIS Adapter tool displays.
At first start, you are prompted to enter and confirm a password, which you can then enter to access the tool afterwards.
Enter the password and click Login.

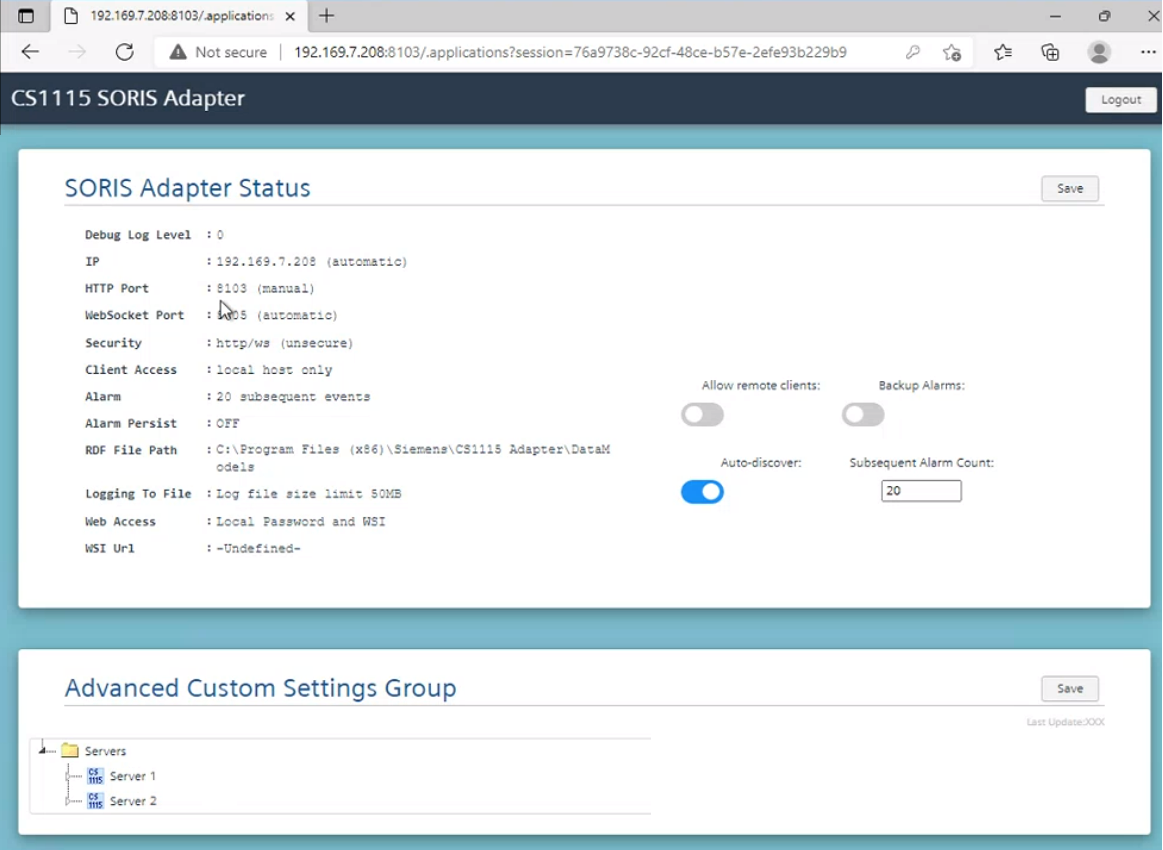

The CS1115 SORIS Adapter tool displays.
Enable Auto-discover to let the adapter synchronize the management station after this configuration procedure.
If necessary, configure the other parameters:
Allow remote clients (if available), to set if the adapter is installed on a separate PC.
Backup Alarms (if available), to enable the alarm logging.
Subsequent Alarm Count, to adjust the number of subsequent alarms stored for each fire object (default is 20).
