System Tab

Pre-requisite Configuration Expander

• Extension Module: Displays list of all extension modules which can be configured.
• Pre-requisite Set-up Status: Displays the status of pre-requisite configuration
• Action: Allows you to configure pre-requisites for extension modules.

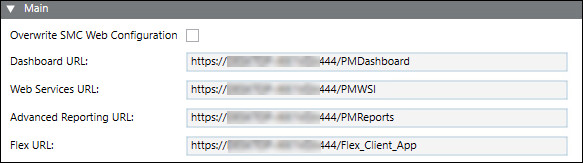

Main Expander

It allows you to configure the following fields:

• Overwrite SMC Web Configuration: Allows you to overwrite the URL configurations applied from the SMC.
• Dashboard URL: Displays the Dashboard URL.
• Web Service URL: Displays the Web Service URL.
• Advanced Reporting URL: Displays the Advance Reporting URL.
• Flex URL: Displays the Flex URL.

Network Configuration Expander

It allows you to configure the following fields:

• Protocol: Allows you to enter the protocol.
• Network Name: Allows you to enter the network name.

Software Account Configuration Expander

It allows you to configure the following field:

• Username: Allows you to select the software account user name from drop-down list.

Smoothing Expander

It allows you to configure the following fields:

• Historical Data Smoothing: Allows you to select between time based smoothing or value based smoothing.
  Time: Allows you to select the interval for time based smoothing in the Smoothing Time Interval column.
  Value: Allows you to enable value based smoothing. The current value is archived only when there is a change from the last read value.
• Value Group: Displays the property group of the devices being polled.
• Smoothing Time Interval: Allows you to select smoothing time intervals for the selected value groups.

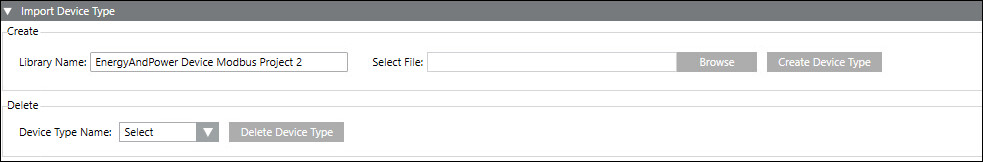

Import Device Type Expander

It allows you to create or delete new device types.

• Create
• Library name: Allows you to enter the name of the library under which the new device type is created.
• Select File: Allows you to browse and select the JSON file to be used to create the device type.
• Delete
• Device Type Name: Allows you to select the device type to be deleted.
