Adjusting CS6 Configuration
- If required, do one or more of the following adjustments to the current configuration:

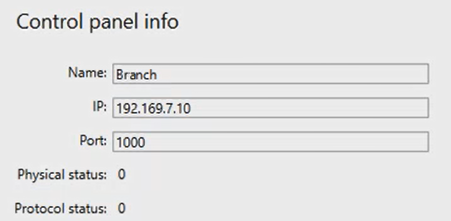

- Under the System tree, select a branch, and the corresponding Control panel info area, optionally modify any of the editable settings.
NOTE: To delete a branch from the configuration, select it, click Remove branch
, and then click Yes.
- Under the branch, select a subsystem, and do one or more of the following:

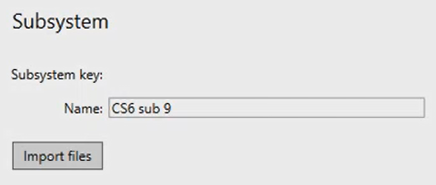

- In the corresponding Subsystem area, optionally modify the Name.
- To import the configuration of a subsystem previously exported to a SVE6 file, click Import files. Then in the Browse CS6 configuration files dialog box, navigate and select the desired SVE6 file to import, click Open, and then click OK.
Once imported, this configuration is also saved in the CSV configuration file.
NOTE: To delete a subsystem, select it, click Remove subsystem , and then click Yes.

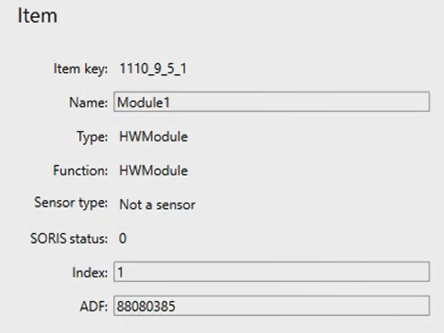

- Under Systems, select an item, and in the corresponding Item area, optionally modify any of the editable settings.

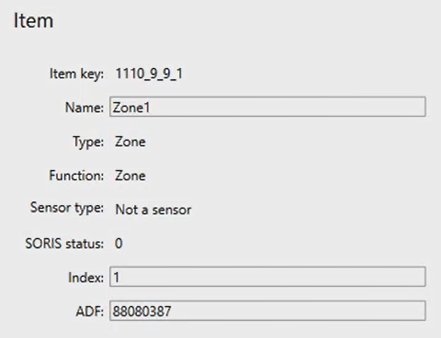

- Under Zones, select an item, and in the corresponding Item area, optionally modify any of the editable settings.

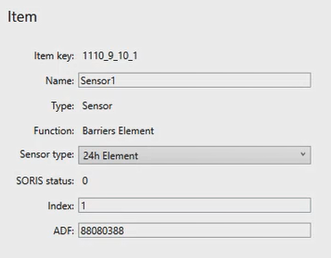

- Under Sensors, select the item, and in the corresponding Item area, optionally modify any of the editable settings, or modify the Sensor type.

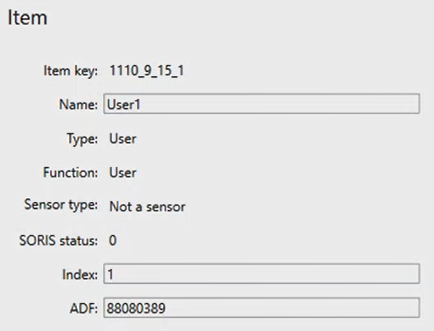

- Under Users, select the item, and in the corresponding Item area, optionally modify any of the editable settings.

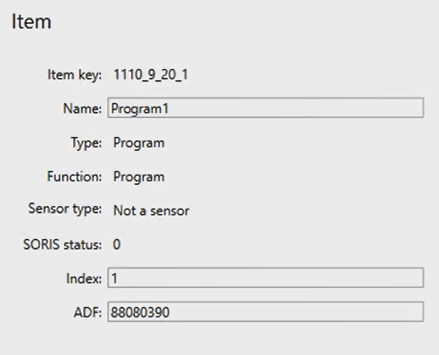

- Under Programs, select the item, and in the corresponding Item area, optionally modify any of the editable settings.
