Loading NK82xx Configuration

  1. Click Add new branch .
  2. In the Load new branch dialog box, do the following:
    a. Click and select the INI file.
    b. Click Open.
    c. Click OK.
    d. In the Description field, enter a meaningful text.
    e. Click Load.

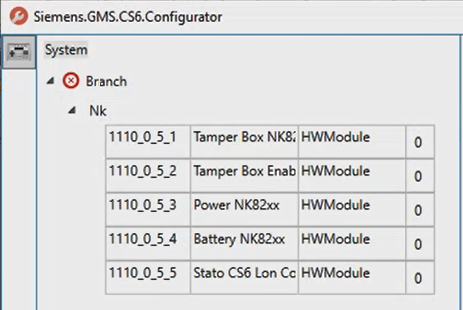

  3. A new branch is displayed under System with status (Offline). It includes the NK82xx configuration.

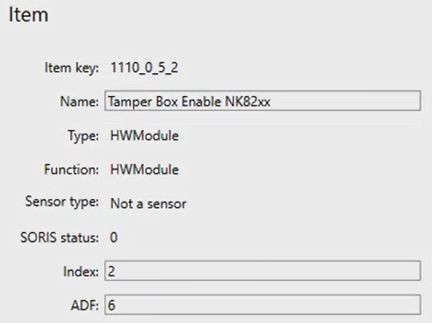

  4. (Optional) Select an NK82xx item, and in the corresponding Item area, modify any of the editable settings.
