Configure the Haystack Discovery Rules

  1. You want to configure a set of filtering and mapping rules to control the acquisition of Haystack entities into System Browser.
  2. The HaystackAdapterConfigurator tool is open.

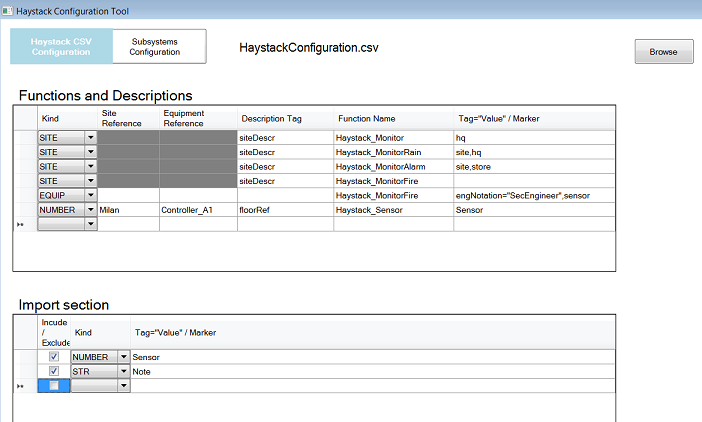

  1. On the upper side of the window, click Haystack CSV Configuration.
  2. Two data sections display:
    • Functions and Descriptions section
    • Import section
  3. The two sections define two corresponding groups of rules that enable you to:
    - Control the configuration of Description and Functions for specific Haystack entities (Site, Equip, Bool, Number, Str) in Desigo CC.
    - Filter in or out specific Haystack entities.
    For more information, see Haystack Discovery Rules and CSV Format.
  4. Configure the rules as necessary and click Save As… to save the configuration into the HaystackConfiguration.csv file.
  5. The adapter takes into account the new configuration and updates the Haystack objects in System Browser.
  6. Check the new System Browser configuration. If necessary, repeat the steps above to refine the configuration.
