Manually Set New Detectors

  1. Select the desired branch.
  2. Click Add sensor .
  3. In the Add Detector dialog box, enter the Detector ID and Detector name.
  4. Click OK.
  5. Expand the branch, and select the newly created detector item.

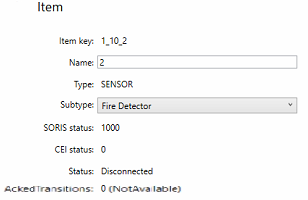

  6. In the corresponding Item area, optionally modify the Name; then select the appropriate value from the Subtype drop-down list.
    NOTE: You can add a maximum of 3167 detector items.
  8. Repeat the previous steps to create all the required detectors.
  1. Under the branch, the new items are highlighted in blue. The additional text To be downloaded in blue indicates that the item configuration is saved locally only. Its status is Disconnected.
