After the event manager installation, the EventManagerConfigurator.exe application is available in the installation folder.
Run OTM_EventManagerConfigurator.exe.

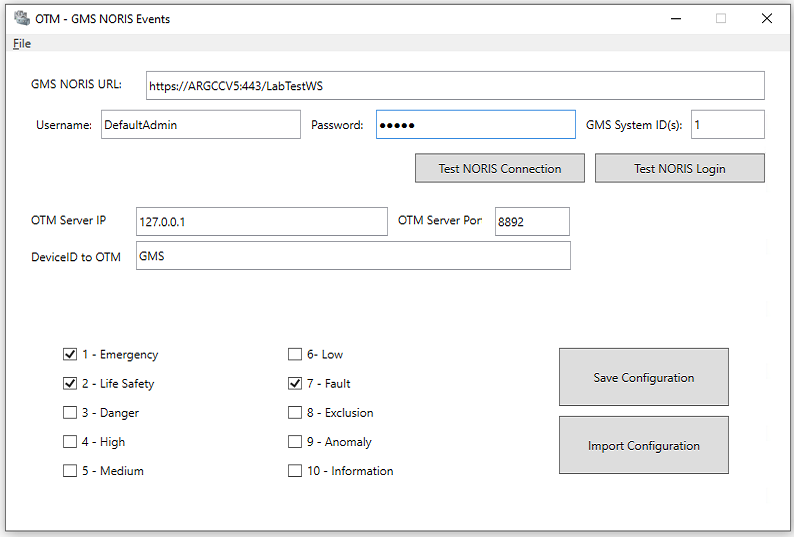

The Event Manager Configurator window displays the File page, which includes three sets of configurable fields: - In the upper part, the Desigo CC NORIS web site access parameters. - In the middle, the OTM access parameters. - In the lower part, the event category selectors.
Configure the Desigo CC NORIS web site access parameters:
In GMS NORIS URL, enter the web service application URL that you configured in SMC (URL field from the Web Application Details). NOTE: It is recommended to use HTTPS for secure communications.
In Username and Password, enter the credentials of a Desigo CC user that has scope visibility on the events to transmit, and on the OTM System object (see OTM Events). NOTE: Use the pushbuttons to Test NORIS Connection and Test NORIS Login. To run a test, click the button, and a success or failure response appears on the button itself.
Configure the OTM access parameters:
OTM Server IP address
OTM Server Port DeviceID to OTM NOTE: The communication protocol is UDP.
Configure the event categories.
Select the check boxes that correspond with the event categories that you want to be transmitted, and deselect the others.
Select the File page and then Save Configuration.
The ServiceConfig.json file is saved in the event manager folder. The file contains the configuration parameters for the event manager service to use. NOTE: Use the Import Configuration button to select a valid ServiceConfig.json file and get the parameter values from it.
