Map the Geographical View Hierarchy

  1. Select Project > Field Networks > [SORIS network].
  1. Select the SORIS tab.

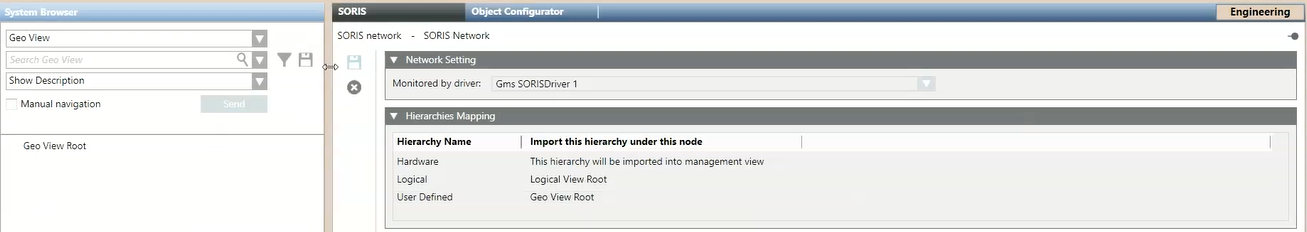

  1. Open the Hierarchies Mapping expander.
    NOTE: By default, every hierarchy is assigned to Management View only.
  1. Define the geographical view as the target of the import of the objects hierarchies as follows:
    a. In System Browser, select the geographical view from the drop-down list.
    b. In the tree structure, select the root node of the view and drag it to the User-Defined field in the Hierarchies Mapping expander.
  • Once configuration data is discovered, the imported hierarchies of objects will be automatically built according to the geographical level.
