Configure SAP iPro Event Manager Parameters

  1. After the event manager installation, the EventManagerConfigurator.exe application is available in the installation folder.
  1. Run EventManagerConfigurator.exe.

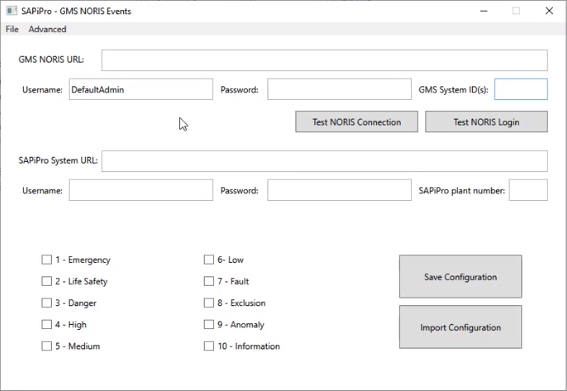

  2. The Event Manager Configurator window displays the File page, which includes three sets of configurable fields:
    - In the upper part, the Desigo CC NORIS web site access parameters.
    - In the middle, the SAP iPro access parameters.
    - In the lower part, the event category selectors.


  3. Configure the Desigo CC NORIS web site access parameters:
    - In GMS NORIS URL, enter the web service application URL that you configured in SMC (URL field from the Web Application Details).
    NOTE: It is recommended to use HTTPS for secure communications.
    - In Username and Password, enter the credentials of a Desigo CC user that has scope visibility on the events to transmit, and on the SAP iPro System object (see SAP iPro Events).
    - In GMS System ID(s), typically set to 1. It may have another value for distributed systems or special user setup.
    NOTE: Use the test NORIS pushbuttons to verify the connection and the login. To run the test, click the button, and a success or failure response appears on the button itself.
  4. Configure the SAP iPro web site access parameters:
    - In SAPiPro System URL, enter the SAP iPro web site URL.
    NOTE: It is recommended to use HTTPS for secure communications.
    - In Username and Password, enter the credentials of a suitable SAP iPro user.
    - in SAPiPro plant number, enter the plant number as defined in the SAP system.
  5. Configure the event categories. Select the check boxes that correspond with the event categories that you want to be transmitted, and deselect the others.
  6. Select Save Configuration, browse to the event manager folder and select Save.
  1. The EventsManagerSettings.config file is created or updated. The file contains the configuration parameters for the event manager service to use.
    NOTE: Use the Import Configuration button to select a valid EventsManagerSettings.config file and get the previous configuration settings from it.
