Create and Configure a Project using SMC

In SMC, you must configure two Long Term Storages (LTS) and link it to the project that you create.

  1. Create database with two Long Term Storages in SMC.
    a. Select History Infrastructure.
    b. Click Scan Local.
    c. Select the Required SQL server and click Link .
    d. Click Add to create the HDB.

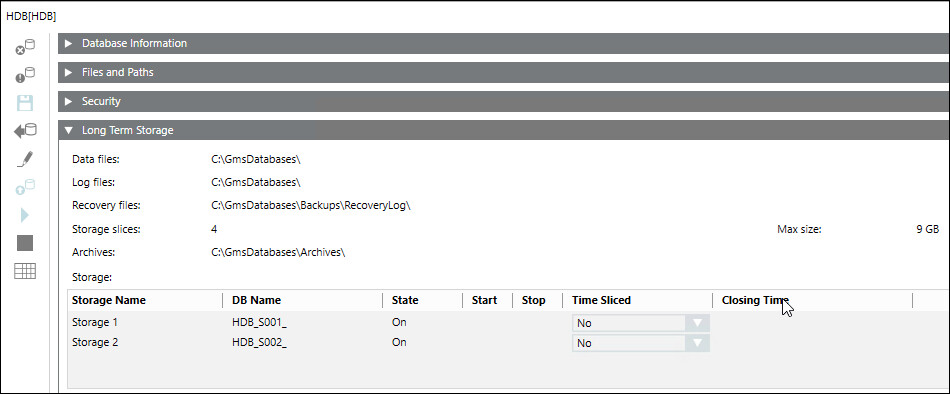

    e. In the Long Term storage expander, click Add Storage two times to create two long term storages.
    f. Select the Start check box for the two storages.
    g. Click Save.
    NOTE: Every storage will have two storage slices.
  1. Create a project with required extensions WSI, Advanced Reporting, D3 Visualization, Modbus. Do one of the following:
  • Click Create Project from Template to create a project using the template project settings.
  • Click Create Project to create project and configure the project manually.
    NOTE: Change the endianity configuration in the config file in the config folder located at
    [installation drive:]\[installation folder:]\[ project name:]\
    Set littleEndianRegister=0. For more information, refer Representation of Swapped Float Values.
    For example, for a Modbus driver with driver number 2, you must modify the config file as:
    [mod_2]
    littleEndianRegister=0
  1. Link the database with two LTS to the project.
  • The database is linked to the project containing all required extensions of Powermanager.
