Schedule a Report

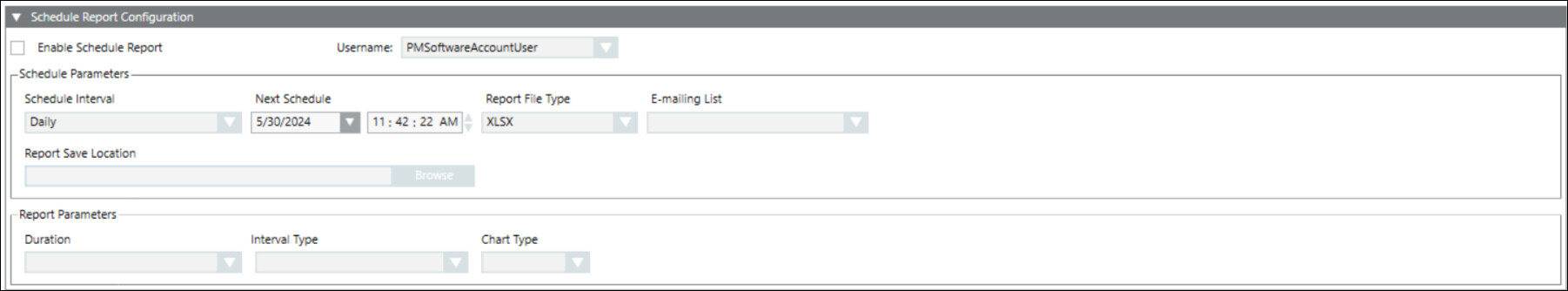

  1. Select the Enable Schedule Report check box to activate the report scheduling configurations.
  2. If the local or global software account is configured under the system node > software account configuration, by default the software account username will auto populate in the Username section.
    NOTE 1 : If the software account is not configured under system node, you can select any software account from the drop down menu in the username section.
    NOTE 2 : To create local or global software account, click New Software Account User.
  3. From the Schedule Interval drop-down list, select the scheduling interval.
  4. From the Next schedule drop-down list, select the scheduling date and time.
  5. From the Report File type drop-down, select the format of the report file.
    NOTE: For EN 50160 reports, XLSX format is not supported.
  6. Perform one of the following steps to route a report to an email group, to a location in the local memory or both.
    • From the E-mailing list drop-down list, select an email group.
    • Click Browse to select the path to route the report to the local memory.
  7. From the Duration drop-down list, select the duration for which the report has to be generated.
  8. From the Interval Type drop-down list, select the type of interval at which the values have to be recorded.
  9. In the Interval Length field, enter the length of the interval for which the values have to be recorded.
  10. Select the Additional Interval check box to record an additional interval value for the selected measurement points.
  11. Click Save .
  1. The selected report is scheduled and routed to a folder or an email list.
