Configure the PG/PC Interface

  • Any project already created for Simatic S7 EM must be stopped.
  1. Click Start > Control Panel and then click PG/PC interface (32bit).

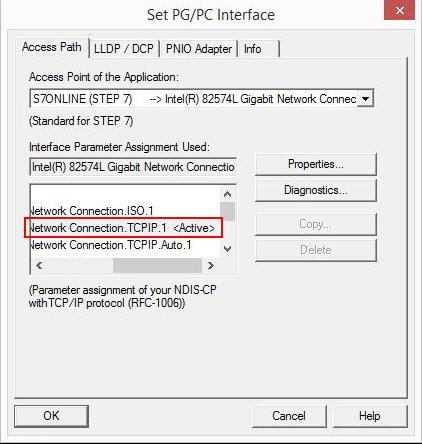

  1. Assign the network adapter for the S7 TCP/IP communication.
    NOTE: <Networkcard>.TCPIP.x <Active> is recommended. (Do not use *ISO* or *Auto* network adapter.)
  1. Click Diagnostics.
  1. In the SIMATIC NET Diagnostics window, click Test to test the communication.
  1. Click OK.
  1. Click OK, to apply the setting of the SIMATIC NET Diagnostics window.
  • The PG/PC interface is successfully configured.
