Modify Building

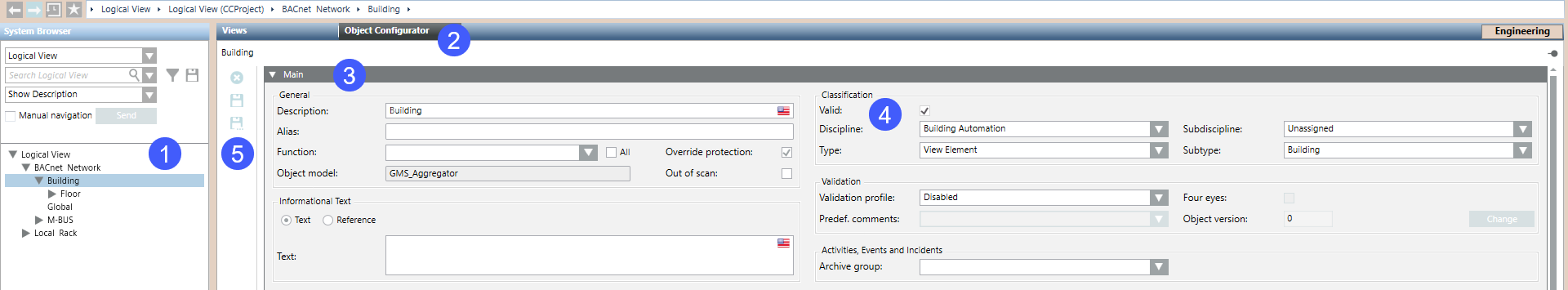

  1. Select Logical View > [subsystem name] > [building name].
  2. Select the Object Configurator tab.
  3. Select the Main expander.
  4. In the Classification section, do the following:
    • Select the Valid check box.
    • Select Building automation from the Discipline drop-down list.
    • Select View element from the Type drop-down list.
    • Select Building from the Subtype drop-down list.
      NOTE: Permitted subtypes are campus, building, section, area, and floor.
  5. Click Save .
  6. Repeat workflow for the entire building.
