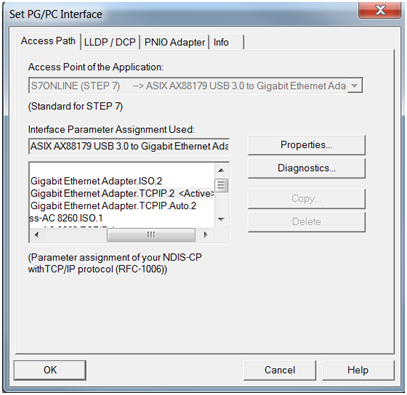

Configure the PG/PC Interface

  • Any pre-existing Simatic S7 EM project is stopped.
  1. Click Start > Control Panel > PG/PC interface (32bit).
  1. Assign the network adapter for S7 TCP/IP communication.
    NOTE: <Networkcard>.TCPIP.x <Active> is recommended. (do not use *ISO* or *Auto* network adapter).
  1. Click Diagnostics.
  1. In the SIMATIC NET Diagnostics window, do the following:
    a. Click Test.
    b. Click OK.
  1. In the Set PG/PC Interface dialog box, click OK.
  • The PG/PC interface is configured.
