Checking the Hierarchies Mapping

  1. Select Project > Field Networks > S7 Network.

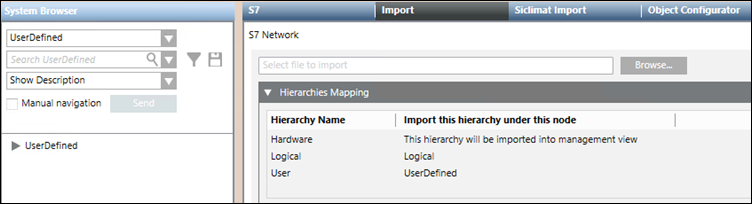

  1. In the Siclimat Import tab, open the Hierarchies Mapping expander, and define the destination in the optional views (logical view and User View) of the data structures (hierarchies).
  • The suggested field indicates the correct view root to link for each specific hierarchy.
  1. To assign a hierarchy to a destination view:
    a. In System Browser, select User View or logical view.
    b. Drag the view root element to the suggested field.
  • The hierarchies settings that you configured are activated and applied during configuration data import.
