Acknowledge or Reset an SPC Zone

You can issue commands to acknowledge or reset active events on an intrusion zone.

  1. Select Project > Field Networks > [SPC Network] > [SPC panel] > […] > [area] > [zone].

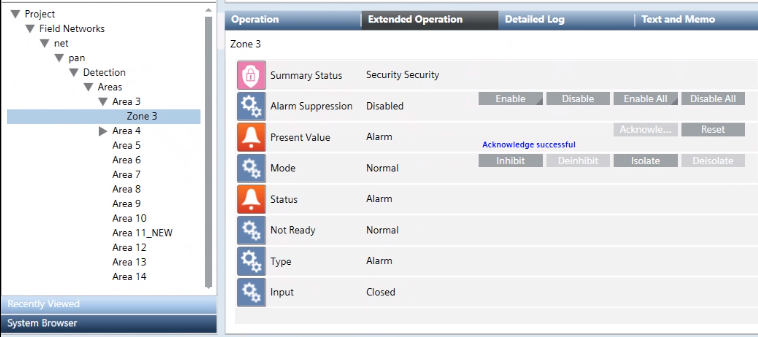

  1. In the Operation or Extended Operation tab, next to the Present Value property, click on the required command:
  • Acknowledge. Available when there is an active event on the zone that requires ack to silence the SPC central buzzer.
  • Reset. Available after the event is acknowledged.
